304H 304 316 Welding Stainless Steel Channel Bar H Beam I-Beam Width 100mm 118mm 126mm

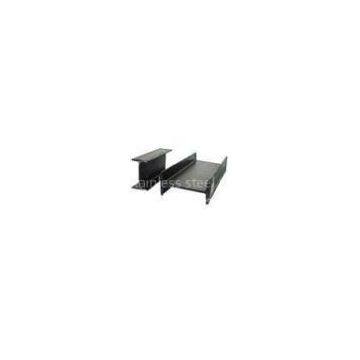

Stainless Steel H Beam (I-beam)
1. Standard: AISI, ASTM, GB, JIS, BS, DIN
2. Material: 201, 301, 304, 309S, 310S, 316, 316L, 321, 410, 430 & others
3. Size: 100× 68× 4.5mm-630× 178× 15mm
4. Surface: Annealed, pickled
5. Technique: Welded
6. Shape: H/I shape
7. Applications: Widely used in all kinds of architecture and engineering structure, such as the beam, bridges,
transmission tower, hoisting.
10. Packaging: Standard export packing or according to customer\'s request
11. Delivery Time: According to the quantity
12. Payment: L/C or T/T
13. Minimum order quantity: 1MT
|
No |
Height (h) |
Flange Width (b) |
Web Thick. (d) |
Theoretical weight |
|
10 |
100 |
68 |
4.5 |
11.26 |
|
12 |
126 |
74 |
5.0 |
13.99 |
|
14 |
140 |
80 |
5.5 |
16.9 |
|
16 |
160 |
88 |
6.0 |
20.51 |
|
18 |
180 |
94 |
6.5 |
24.14 |
|
20a |
200 |
100 |
7.0 |
27.92 |
|
20b |
200 |
102 |
9.0 |
31.1 |
|
22a |
220 |
110 |
7.5 |
33.07 |
|
22b |
220 |
112 |
9.5 |
36.42 |
|
24a |
240 |
116 |
8.0 |
37.4 |
|
24b |
240 |
118 |
8.0 |
41.2 |
|
25a |
250 |
116 |
8.0 |
38.11 |
|
25b |
250 |
118 |
10.0 |
42.03 |
|
27a |
270 |
122 |
8.5 |
42.08 |
|
27b |
270 |
124 |
10.5 |
42.17 |
|
28a |
280 |
122 |
8.5 |
43.49 |
|
28b |
280 |
124 |
10.5 |
47.89 |
|
30a |
|
