Product Details
Brand Name: | Sunwell | Place of Origin: | China |
Product Description
Certification:CCC, CE, RoHS, UL

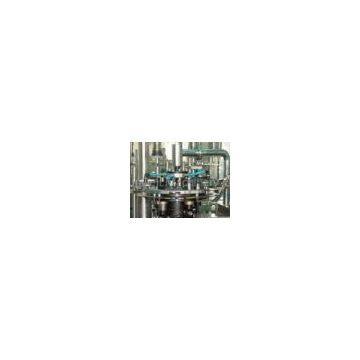

High speed Rotary high viscous liquids filling machine for Bottling of edible oil, syrup
GYH series is special for edible oil filling, capping and equipped with rotary transmission, PLC and frequency adjuster in speed. It is innovated and designed in the requirement of edible oil technics, on the bases of introducing, digesting and absorbing advanced technology abroad. It is reasonable in structure, safe to operate and easy to maintain, which is an ideal choice for edible oil producers.
Specifications:
Model |
GYH20-5 |
Number of working positions |
filler 20, capper 5 |
Capacity |
5000BPH (1000ml) |
Applicable bottle |
diameter 50~200mm, height 150~360mm |
Material supply pressure |
0.03~0.08 MPa |
Vacuum in filling tank |
-50~80mbar |
Air supply pressure |
0.6~0.7MPa |
Air consumption |
0.5 M3/min |
Installed power of motor |
3.55Kw |
Rated voltage |
380V, 50Hz |
Machine dimension |
2100mm×2670mm×2950mm (L×W×H) |
Machine weight |
2500kg |
Applications:
Bottling of edible oil, syrup and high viscous liquids.
Features
Compact structured, good-looking, easy to operate and highly automated. Parts with contact with material are all made of stainless steel of food-grade, no dead angles and easy to clean up. Filling volume is controlled with film valves to ensure accurate filling. High-speed and highly accurate filling valves ensure no loss of liquid at high speed. Liquid buffer element specially designed inside filling valves can eliminate the cutting affection and wallop between liquid and container, easy to eliminate the air bubble in material. Capping heads are magnetic constant-torque equipped to ensure capping quality with no damage. Highly effective cap sorting and feed in system is protective for feed in and cap absence. Equipped with overload system to safeguard machine and operators. Equipped with cap absence detector and bottle jam-up detector, which could stop the monoblock in that case. Equipped with output calculating function for monoblock. Main electronic components (touch screen, PLC and frequency inverter) are imported products.Equipment Structure
Bottle infeed
Bottle infeed by combination of infeed screw and infeed starwheel.
Equipped with bottle jam protection device.
Filling Machine
The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck.
The filling system has liquid level automatic control.
Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it starts to fill.
Bottle is conveying by the wheel in the filling part.
Flip (Press-on) Capper
Electronic control system part
The electronic components like PLC and transducer are from Schneider, Mitsubishi, Omron, etc., and the pneumatic devices are also from international famous brands.
Main Specification
Touch screen: THINGET or Weinview PLC program controller: Mitsubishi or Omron Inverter: Mitsubishi or omron Photoelectrical controller: Omron Proximity switch: Autonics Other electrical components: Schneider Pneumatic component: Airtac Main motor: SiemensContact Us
