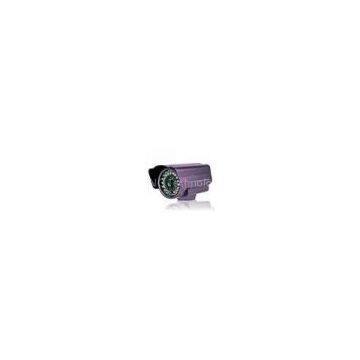

Outdoor Infrared CCTV IP Cameras CX-J0233-WS-IR With CE, FCC

Shenzhen HAOMING Technology Co.,Ltd
Outdoor Infrared CCTV IP Cameras CX-J0233-WS-IR With CE, FCC thumbnail-1
Outdoor Infrared CCTV IP Cameras CX-J0233-WS-IR With CE, FCC photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HAOMING
Place of Origin:
China
Model Number:
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HAOMING
Place of Origin China
Delivery Time:5-15 days

Outdoor Infrared CCTV IP Cameras CX-J0233-WS-IR with CE, FCC

Outdoor InfraredCCTV IP CamerasCX-J0233-WS-IR>Major features:

high-density and programmable communication media processor, SOC single chip solution
MJPEG video compression
Waterproof, IR distance 15M
Support wireless network (Wi-Fi/802.11/b/g)mobile
High-sensitivity CMOS sensor
Resolution:640 x 480(VGA), 320 x 240(QVGA)
Supporting image snapshot
Built-in 10M/100M auto MDI/MDIX Ethernet interface
Frame ratio or Bandwidth can be adjusted
Supporting Dynamic IP (DDNS)and UPnP LAN and Internet(ADSL, Cable Modern)
Giving alarm in cause of motion detection
Supporting multiple network protocols TCP/IP, HTTP, ARP, RARP, TCP, ICMP, DHCP
Built-in RTOS, supports software download and configuration online, that is convenient for camera updating and management
Built-in Web server, supports remotely viewing and/or management the camera form a standare Web browser on any computer, anywhere, and at anytime
Support Smart Phone, 3G phone or Iphone Control and Surveillance
Support Firefox Browser (optional)

Outdoor InfraredCCTV IP CamerasCX-J0233-WS-IR> Specification


Model

CX-J0233-WS-IR

Image  Sensor

Sensor

Color CMOS Sensor

Resolution

640 x 480 Pixels

Lens

f:6mm, F 2.0 (IR Lens)

Viewing Angle

60 Degree

Minimum Illumination

0.5Lux @ F2.0

Video/Image Setting

Video Compression

MJPEG Video Compression

Video Frame Rate

30fps(QVGA), 30fps(VGA)

Resolution

640 x 480(VGA), 320 x 240(QVGA)

Flip Mirror Images

Vertical / Horizontal

Light Frequency

50Hz, 60Hz or Outdoor

Motion Detection

Supported

Snapshot

Supported

Video Parameters

Brightness, contrast

Communication

System Interface

10Base-T/100Base-TX Ethernet Port

Supported Protocol

TCP/IP, HTTP, ARP, RARP, TCP, ICMP, DHCP

 Wireless LAN

Support wireless network (Wi-Fi/802.11/b/g)mobile

WEP Encryption

Disable / 64 bit / 128 bit

WPA Encryption

TKIP / AES

Physical / Environment

Infrared Light

Effective range up to 20m

Power Supply

DC5V /2A External Power Adapter

Power Consumption

6W(Max.)

Operate Temperature

-10～55 °C

PC System Requirement

CPU

2.0GHZ or above

Memory Size

256MB or above

Display Card

64M or above memory

Supported OS

Microsoft Windows 98/ME/2000/XP/Vista
