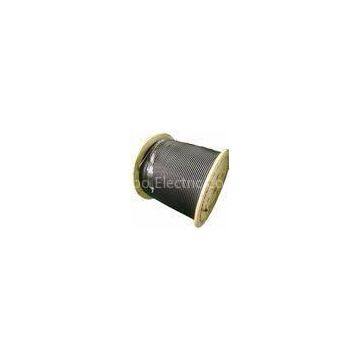

RF Trunk Coaxial Cable, PⅢ 565 JCAM Trunk Cable for CATV Network
Electrical characteristics:
Capacitance: 15.3±1.0pt/ft.(50±3.0nf/km)
Impedance: 75±2 ohms
Velocity of propagation: 89% nominal
Normal DC loop resistance @68OF: 1.61 Ohms/100ft(5.28 ohms/km)
Product description:
Inner conductor is high quality copper clad aluminum (CCA), dielectric core is made of insulating grade virgin polyethylene; seamless aluminum tube as shield, and medium density PE is used for jacket material. Messenger is made of zinc coated (galvanized) carbon steel wire. The jacketed messenger is connected to the trunk cable member with a web.
Physical dimensions | ||
Component | inches | mm |
Inner conductor | 0.129 | 3.28 |
Diameter over dielectric | 0.519 | 13.20 |
Diameter over aluminum tube | 0.565 | 14.35 |
Outer conductor thickness | 0.023 | 0.58 |
Diameter over jacket | 0.625 | 15.86 |
Jacket wall thickness | 0.03 | 0.76 |
Diameter of messenger wire | 0.109 | 2.77 |
Mechanical performance:
Minimum bending radius: 5.0 inches/12.7cm
Maximum pulling tension: 350lbs /159kgf
Minimum breaking strength of messenger: 1800lbs/816kgf
Attenuation@ 68OF(20oC):
@Frequency MHZ | dB/100ft. (MAX.) | dB/100 meters(MAX.) |
5MHZ | 0.14 | 0.46 |
55MHZ | 0.47 | 1.54 |
83MHZ | 0.58 | 1.90 |
211MHZ | 0.95 | 3.12 |
250MHZ | 1.03 | 3.38 |
300MHZ | 1.13 | 3.71 |
350MHZ | 1.23 | 4.04 |
400MHZ | 1.32 | 4.33 |
450MHZ | 1.40 | 4.59 |
500MHZ | 1.49 | 4.89 |
550MHZ | 1.56 | 5.12 |
600MHZ | 1.64 | 5.38 |
750MHZ | 1.85 | 6.07 |
865MHZ | 2.00 | 6.56 |
1000MHZ | 2.17 | 7.12 |
Applications:
P3 565 JCA trunk cable is used as main cable and distribution cable for CATV network, it is applicable in transmission of single and duplex analog signals and a
