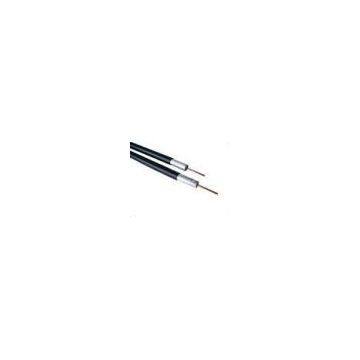

CATV Trunk Cable, P 500 JCASS Trunk Cable With CCA Inner Conductor photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Libo
Place of Origin:
China
Model Number:
PⅢ 500JCASS
Contact Supplier Request Quote Chat Now
Shaoxing Libo Electric Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Libo
Place of Origin China
Model Number PⅢ 500JCASS

Delivery Time:Within 15 days
Certification:CE, ISO9000,ISO14001,RoSH,Certificate of Network access of Broadcast equipment, State Administration

CATV trunk cable, PⅢ 500 JCASS Trunk Cable with CCA Inner Conductor

Description & Specifications:

Product description:

The inner conductor is high quality copper clad aluminum (CCA), dielectric core is produced by insulating grade virgin polyethylene, it is tightly covered by solid aluminum tube. Medium density PE is used as jacket material. Flooded compound is used to prevent corrosion of the trunk cable.

Physical dimensions

component

inches

mm

Inner conductor

0.109

2.77

diameter over dielectric

0.450

11.43

diameter over outer conductor

0.500

12.70

Outer conductor thickness

0.024

0.61

Diameter over flooded jacket

0.570

14.48

Jacket wall thickness

0.030

0.76

Mechanical performance:

Minimum bending radius: 6.0 inches/15.2cm

Maximum pulling tension: 300lbs /136kgf

Electrical characteristics:

Capacitance: 15.3±1.0pt/ft.(50±3.0nf/km)

Impedance: 75±2 ohms

Velocity of propagation: 87% nominal

Maximum D.C resistance @68OF:

Inner conductor: 1.35ohms/1000ft (4.43ohms/km)

Outer conductor: 0.37ohms/1000ft (1.21ohms/km)

Loop: 1.72 ohms/1000ft. (5.64 ohms/km)

Attenuation@ 68OF(20oC):

@Frequency MHZ

dB/100ft. (MAX.)

dB/100 meters(MAX.)

5MHZ

0.16

0.52

55MHZ

0.54

1.77

83MHZ

0.66

2.17

211MHZ

1.09

3.58

250MHZ

1.20

3.94

300MHZ

1.31

4.30

350MHZ

1.43

4.69

400MHZ

1.53

5.02

450MHZ

1.63

5.35

500MHZ

1.73

5.67

550MHZ

1.82

5.97

600MHZ

1.91

6.27

750MHZ

2.16

7.09

865MHZ

2.34

7.68

1000MHZ

2.52

8.27

Applications:

The P3 500 JCASS trunk cable is used as main cable and distribution cable for CATV network, such as base station and equipment cabinets. It is applicable in transmission of single and duplex analog signals and as well as duplex digital signals. T
