Copper Clad Aluminum Tube Trunk Cable P 625 JCAM109, CATV Trunk Cable

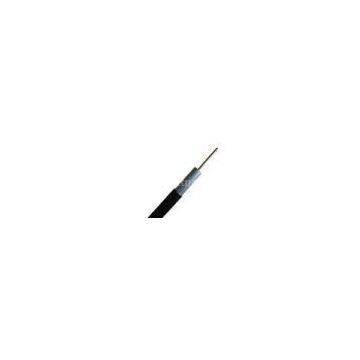

Copper Clad Aluminum Tube Trunk Cable P 625 JCAM109, CATV Trunk Cable thumbnail-1
Copper Clad Aluminum Tube Trunk Cable P 625 JCAM109, CATV Trunk Cable photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Libo
Place of Origin:
China
Model Number:
PⅢ 625JCAM109
Contact Supplier Request Quote Chat Now
Shaoxing Libo Electric Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Libo
Place of Origin China
Model Number PⅢ 625JCAM109

Delivery Time:Within 15 days
Certification:CE, ISO9000,ISO14001,RoSH,Certificate of Network access of Broadcast equipment, State Administration

Copper Clad Aluminum Tube Trunk Cable PⅢ 625 JCAM109, CATV Trunk Cable

Product description:

The jacketed messenger is connected to the trunk cable member with a web.Inner conductor is high quality copper clad aluminum (CCA), dielectric core is produced by insulating grade virgin polyethylene; it is tightly covered by seamless aluminum tube. Jacket is medium density PE; messenger is made of zinc coated (galvanized) carbon steel wire.

Physical dimensions

component

inches

mm

Inner conductor

0.137

3.48

diameter over dielectric

0.565

14.35

diameter over aluminum tube

0.625

15.88

Outer conductor thickness

0.030

0.76

Diameter over jacket

0.685

17.40

Jacket wall thickness

0.030

0.760

Steel messenger diameter

0.109

2.77

Mechanical performance:

Minimum breaking strength of messenger: 1800lbs(816kg)

Minimum bending radius: 7.0 inches/17.8cm

Maximum pulling tension: 475lbs /216kgf

Electrical characteristics:

Capacitance: 15.3±1.0pt/ft.(50±3.0nf/km)

Impedance: 75±2 ohms

Velocity of propagation: 87% nominal

Normal DC loop resistance @68OF: 1.0 Ohms/100ft(3.51 ohms/km)

Attenuation@ 68OF(20oC):

@Frequency MHZ

dB/100ft. (MAX.)

dB/100 meters(MAX.)

5MHZ

0.13

0.43

55MHZ

0.46

1.51

83MHZ

0.57

1.87

211MHZ

0.92

3.02

250MHZ

1

3.28

300MHZ

1.08

3.54

350MHZ

1.18

3.87

400MHZ

1.27

4.17

450MHZ

1.35

4.43

500MHZ

1.43

4.69

550MHZ

1.50

4.92

600MHZ

1.58

5.18

750MHZ

1.78

5.84

865MHZ

1.93

6.33

1000MHZ

2.07

6.79

Applications:

P3 625JCAM109 trunk cable is used as main cable and distribution cable for CATV network, such as base station and equipment cabinets. It is applicable in transmis
