1/2\" NPT Range -50 °c - 600 °c 2\" Dial Stainless Steel Bimetal Thermometer For Industrial
Descrition:
All Stainless Steel Bimetal Thermometer

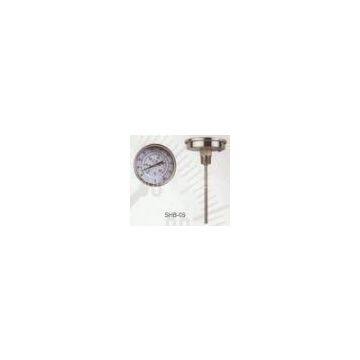

Model No. : From SHB-05 to SHB-09
Applications
All Stainless Steel Bimetal Thermometers meet stringent demands and can be used in industrial applications, where particular importance is attached to measuring accuracy, reproducibility and long-term stability
These thermometers are widely used in chemical and petrochemical industry, machine and apparatus construction, food and beverage industry, pulp and paper industry.
Features
* Accuracy ±1.0% full scale
* Ranges From -50 °C up to 600 °C
From -60°F up to 1100 °F
Dual C&F available
* Case & bezel Bayonet bezel, crimped ring
304 stainless steel material
* Dial Sizes 2\"(50mm), 21/2\"(63mm), 3\"(80mm), 4\"(100mm), 5\"(125mm), 6\"(160mm)
* Connection Back, bottom, adjustable angle
1/2\" NPT standard
* Stem Diameter 6mm, 6.35mm, 8mm, 9mm, 10mm & 12mm
Length from 50mm to 1000mm
Material 304SS standard, 316SS & 316LSS available
* Window Glass standard, safety glass available
* Zero Adjustment External screw for back connection & adjustable angle
Slotted zero adjustment for bottom connection
* Max. Operating Press 15Mpa (220psi)
* Max. Process Temp. 115% of full scale or 600°C
* Protection IP65
|
Model No. |
Form |
Dial |
Range |
Case |
Stem |
Connection |
Accuracy |
|
SHB-05 |
Back Connection |
2”,2.5”, 3”,4”,5”,6” |
-70+70℃ -40+5℃ -5+50℃ -20+60℃ -15+120℃ -20+120℃ -5+115℃10+150℃ 10+200℃ 10+260℃ 65+400℃ 100+540℃ (℃or C&F) |
stainless steel 304 |
2.5”~24” |
1/4”,3/8” 1/2”NPT, BSP,BSPT |
±1.5% |
|
SHB-06 |
Bottom Connection |
||||||
|
SHB-07 |
|||||||
|
SHB-08 |
Adjustable Angle |
||||||
|
SHB-09 |
Back or bottom Connection |
3“,4” |
