YAW-100 electro hydraulic compression testing machine
1. Function
It is mainly used for compression strength test for building materials, such as brick, cement, concrete specimen and component and etc. Equipped with specials accessories, it can be used for bending, flexure resistant test of building materials and compression resistant test of red brick. It meets with the standards, such as ISO 679, ASTM C39, BSEN 1881 and other test standard or method.
2. Features
1) Hydraulic load, electronic measurement, load digital display, loading speed display;
2) Protect function: overload protection and data-hold protection.
3. Main technical parameters
|
Max. test force |
100kN |
|
Relative error of indicated value |
≤±1% |
|
Bearing plate size |
Dia155mm |
|
Max. distance between upper and lower plates |
230mm |
|
Max. piston stroke |
80mm |
|
Piston diameter |
Dia125mm |
|
Nominal voltage of hydraulic oil pump |
25MPa |
|
Motor power |
Three phases, 0.75kW |
|
Dimension |
850×620×1340mm |
|
Net weight |
About 400Kg |
4. Warranty
Customers can enjoy one year free warranty and life long maintenance.
As the professional manufacturer in China, we offer customers with best quality impact testers at competitive price. We sincerely welcome friends at home and abroad to cooperate with us. We would like to offer you our best products and service.

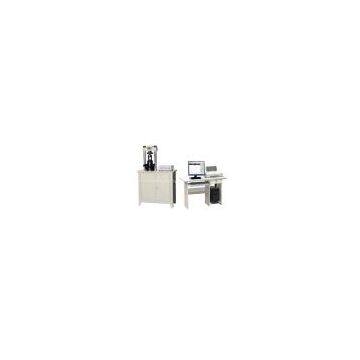

YAW-300B automatic compression testing machine
1. Function
The testing machine is used for cement mortar compressive strength test which meets the standards GB/T17671-1999 and it can also be widely used in concrete, brick and other pressure test within the scope of 300KN.
2. Main technical parameters
|
Max. test force |
300kN |
|
Relative error of indicated value |
≤±1% |
|
Loading speed |
0.3KN/S-10KN/S |
|
Error of loading speed |
±5% |
|
Bearing plate size |
φ120mm |
|
Max. piston stroke |
60mm |
|
Piston diameter |
φ130mm |
|
Max. pressure of oil |
25MPa |
|
Rated flow of oil pump |
1.52L/min |
|
Motor power |
0.75kW |
|
Dimension of main frame |
870×450×1400mm |
|
Weight of main frame |
400Kg |
3. Warranty
Customers can enjoy one year free warranty and life long maintenance.
As the professional manufacturer in China, we offer customers with best quality impact testers at competitive price. We sincerely welcome friends at home and abroad to cooperate with us. We would like to offer you our best products and service.
