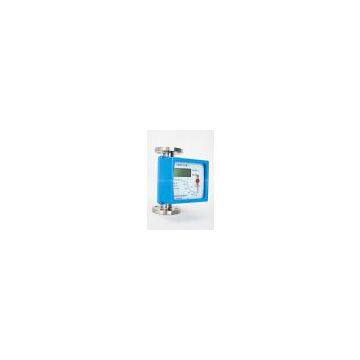

Help CenterMetal Tube Rotameter
Related Products
-
Electromagnetic Flow MeterNegotiableMOQ: 1 Piece -
Vortex Flow MeterNegotiableMOQ: 1 Piece
-
Oval Gear Petrol Flow MeterNegotiableMOQ: 1 Piece
-
Handheld Ultrasonic Flow MeterNegotiableMOQ: 1 Piece
-
Wall Mounted Water Ultrasonic Flow Meter,Explosion-proof Ultrasonic FlowmeterNegotiableMOQ: 100 Sets
Technical parameters
1. Measuring range:
Water (20 °C)-2.5~60000 L/h
Air ( 20 °C, 0.10325 MPa)-0.07~750 m³ / h
2. Measurement range:10:1
3. Accuracy:Class1.5
4. Process pressure :
DN15~DN50, 4.0 MPa;
DN80~DN150, 1.6MPa;
Jacket pressure: 1.6 MPa
5. Process temp: -80~+200 °C (PTFE :0°C ~ 85°C)
6. Connection:
Flange or Screw;
Flange: GB / T9119; ANSI 150lbs, 300lbs;HG20592~20635;
7. Environment Temp.: -25~+55°C
8. Connection cable: RVVP 3X28 / 0.15
9. Density: DN15 ≤ 5 mpa.s; DN25~DN150 ≤ 250mpa.s
10. Signal output: 0~10 mA or 4~20 mA
linearity: 1% ; temperature effect: 0.5% / 10 °C; Voltage : 13~30 VDC;
Power supply consumption: ≤ 250mW; connection screw: M20 X 1.5;
11. Limit alarm:
Power:220VAC 10%; power consumption: ≤ 3W; Process temp: -25 ~ +60°C
12. Explosion-proof number: GYB01319 ; Recommendation adaptor safety barrier : LB906
