Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > 4MT Single Cylinder Coal Steam Boiler

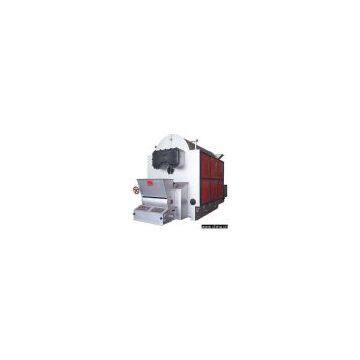

4MT Single Cylinder Coal Steam Boiler

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Place of Origin:

China

Model Number:

Contact Supplier Request Quote Chat Now

Wuxi Taihu Boiler Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Place of Origin China

Specifications:1) Type: DZL4-1.25-AII instantly installed steam boiler2) Actual evaporation: 4MT 3) Pressure: 1.25MPa4) Hydraulic tested pressure: 1.65MPa5) Fuel category: soft coal II6) Water supply temperature: 20oC7) Air temperature: 25oC8) Steam temperature: 194oC10) Smoke exhaust temperature: 163oC11) Ventilation: mechanical12) Boiler thermal efficiency: 77.9%13) Coal consumption (max. coal consumption included): 656kg/h14) Heated surface of the main part: 114.6m215) Heated surface of the coal saver: 38.5m216) Effective area of the boiler bar: 4.94m217) Metallic consumption of the machine: 16184.45kg18) Heat preservation materials: asbestos silica acid fiber, vermiculite, clayThe boiler is with single cylinder horizontal instantly installed three-stroke smoke fire tubes. The fire tube is of low investment, convenient installation, quick start-up and reasonable structure covering a small area. The main structure features are as follows:1) Large heated area 2) Light chain-grate stoker, reliable, small coal leakage, good smoke and dirt elimination, and time saving for installation and maintenance3) Reasonable wind distribution facilitates for fuel burning4) Increased effective area of the boiler bar, improved burning extent, and great cola adaptability 5) Step-less shift of the boiler bar6) Automatic exported tube plate welded at the front-back tube plate with top qualityPacking:Max. transportation size: 6.3 x 2.65 x 3.55mMax. transportation weight: 26.7MT producing area:China payment:30% deposit, balance after shipment supplying capacity:50 sets/month
