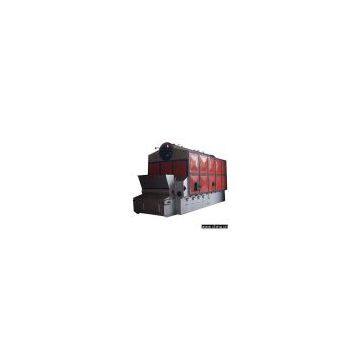

4MT Dual Cylinder Steam Chain Boiler
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Place of Origin:
China
Model Number:
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
1MT Steam BoilerNegotiableMOQ: 1 Piece -
2MT Single Cylinder Instantly Installed BoilerNegotiableMOQ: 1 Piece
-
6MT Dual Cylinder Assembled Hose Steam BoilerNegotiableMOQ: 1 Piece
-
10MT Dual Cylinder Assembled Steam BoilerNegotiableMOQ: 1 Piece
-
15MT Dual Cylinder Assembled Steam BoilerNegotiableMOQ: 1 Piece
Place of Origin
China
Specifications:1) Actual evaporation: 4MT/h 2) Pressure: 1.25MPa3) Saturated steam temperature: 194oC4) Water supply temperature: 20oC5) Tested thermal efficiency: 79.6%6) Outer size (L x W x H): 7,000 x 4,000 x 4,900 7) Fuel category: soft coal IIThe boiler is with a dual cylinder longitudinal structure and natural cycle methods consisting of the upper components with the dominant main parts. The lower components are primarily the combustion equipment. The two main parts can be instantly installed and manufactured. The boiler housing is with dense water exhaust cooling wall around the hearth. Partition is mounted at the back of the hearth in front of the convection check and forms the combustion ash room. Convection check is mounted at the back of the combustion ash room. The smoke flows into the first and the second checks through the combustion ash room and exhausts into the chimney through the coal saver and dust catcher. Structure: 1) Upper and lower cylinder diameter: φ800mm 2) Cylinder central distance: 2,290mm 3) Left-right cabinet: φ159mm4) Level central distance: 2,100mm5) Hearth water cooling wall pitch: 54mm6) Convection check distance: 81 x 84mm7) The side wall is connected by 2 descending tubes leaded from the upper cylinder8) There are 2 φ108 x 4.5 descending tubes at each side of the lower cylinder connected with the concentration cabinets9) The boiler check and the water cooling wall are welded and connected with the upper and lower cylindersCombustion equipment: 1) Light chain-grate stoker2) Width: 1,600mm3) Effective area: 4.8m24) Four independent wind storage cabinets5) Dual-side air inlet ash door6) Brick boiler arc7) Front water cooling arc and level angle are 30o 8) Outlet height: 800mm9) Back arc outlet height: 500mm10) Front-back arc coverage rates are 21% and 46.5%11) The block wall is mounted at the upper outlet of the front arc to increase the combustion room temperature and smoke flowDesign features: 1) After extensive selection, the vertical hose boiler is easily defined and symmetrical facilitating manufacture and maintenance. It is with compact size and low metallic consumption, great water capacity and large convection heat transfer coefficient 2) To reduce the boiler wall weight, the side water cooling wall pitch is densely structured and gets rid of the fire-bricks. Burial boiler wall increases the air-tightness 3) Back arc and outlet block wall of the hearth are brick structured to increase the temperature in addition to expanding the fuel application 4) Manhole is not installed in the combustion ash room. Smoke flow speed may be increased appropriately, because the sole is mounted to exhaust the ash to the lower grate 5) Front wall water cooling wall and descending tube are mounted to increase the rigidity of the upper part 6) An aisle is reserved at the two sides of the convection check to reduce dead corners and to facilitate maintenance 7) An examination door is reserved at the back of the left side of the second convection check. If necessary, the aisle can be reached through the examination door 8) Compressed shell, stylish design9) Step-less motor and shift of the grates are necessary for the automatic combustion 10) Equipped with multifunctional meter control panel; the inspection display meter, the water supply automatic control panel, and the coal combustion control panel are for manipulating rotating speed on the operation table 11) Thermal data determination: subject to the determination of National Industrial Boiler Product Quality Inspection Center, the heated surface of the boiler is with reasonable configuration and large overload capacity. The average efficiency is 79.6%. Steam hu
producing area:China
payment:30% deposit, balance after shipment
supplying capacity:50 sets/month
