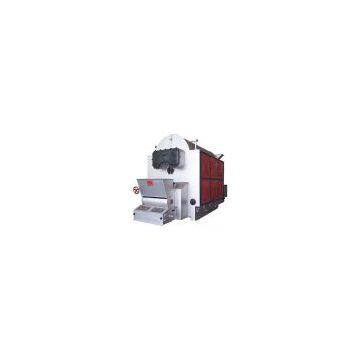

Home > Manufacturing & Processing Machinery > Machinery for Food, Beverage & Cereal > Pet Food Processing Machinery > 4MT Single Cylinder Coal Steam Boiler
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Humei
Place of Origin:
China
Model Number:
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
Boiler (WNS)NegotiableMOQ: 1 Set -
Sell 20MT Dual Cylinder Assembled Steam BoilerNegotiableMOQ: 1 Set
-
Sell 15MT Dual Cylinder Assembled Steam BoilerNegotiableMOQ: 1 Set
-
Sell 10MT Dual Cylinder Assembled Steam BoilerNegotiableMOQ: 1 Set
-
Sell 8MT Dual Cylinder Assembled Steam BoilerNegotiableMOQ: 1 Set
Brand Name
Humei
Place of Origin
China
Specifications: 1) Type: DZL4-1.25-AII instantly installed steam boiler 2) Actual evaporation: 4MT 3) Pressure: 1.25MPa 4) Hydraulic tested pressure: 1.65MPa 5) Fuel category: soft coal II 6) Water supply temperature: 20oC 7) Air temperature: 25oC 8) Steam temperature: 194oC 10) Smoke exhaust temperature: 163oC 11) Ventilation: mechanical 12) Boiler thermal efficiency: 77.9% 13) Coal consumption (max. coal consumption included): 656kg/h 14) Heated surface of the main part: 114.6m2 15) Heated surface of the coal saver: 38.5m2 16) Effective area of the boiler bar: 4.94m2 17) Metallic consumption of the machine: 16184.45kg 18) Heat preservation materials: asbestos silica acid fiber, vermiculite, clay The boiler is with single cylinder horizontal instantly installed three-stroke smoke fire tubes. The fire tube is of low investment, convenient installation, quick start-up and reasonable structure covering a small area. The main structure features are as follows: 1) Large heated area 2) Light chain-grate stoker, reliable, small coal leakage, good smoke and dirt elimination, and time saving for installation and maintenance 3) Reasonable wind distribution facilitates for fuel burning 4) Increased effective area of the boiler bar, improved burning extent, and great cola adaptability 5) Step-less shift of the boiler bar 6) Automatic exported tube plate welded at the front-back tube plate with top quality Packing: Max. transportation size: 6.3 x 2.65 x 3.55m Max. transportation weight: 26.7MT
