Multilayer PCB (2 Layers,4 Layers,6-8 Layers,10-12 Layers,14-18 Layers,20-22layers)

Multilayer PCB (2 Layers,4 Layers,6-8 Layers,10-12 Layers,14-18 Layers,20-22layers) thumbnail-1
Multilayer PCB (2 Layers,4 Layers,6-8 Layers,10-12 Layers,14-18 Layers,20-22layers) thumbnail-2
Multilayer PCB (2 Layers,4 Layers,6-8 Layers,10-12 Layers,14-18 Layers,20-22layers) photo-1

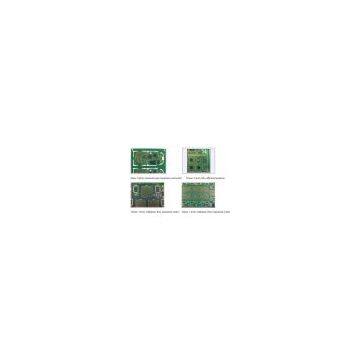

Multilayer PCB (2 Layers,4 Layers,6-8 Layers,10-12 Layers,14-18 Layers,20-22layers) photo-2
Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Place of Origin:
China
Model Number:
Multilayer PCB
Contact Supplier Request Quote Chat Now
Yinghua International (hk) Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number Multilayer PCB

Multilayer PCB (2 layers,4 layers,6-8 layers,10-12 layers,14-18 layers,20-22layers)



Multilayer PCB:
Super thickness of copper: Max60z inner and outer layer
Buried/Blind hole: 0.1mm(4mil)
Through hole size: 0.1mm(4mils)
Via hole size(laser drilling): 0.076mm(3mils)
Aspect rations: 13: 1
BGA: Φ 0.5mm(20mils)
Min line W/S: 0.075/0.075mm(3x3mils)
Min thin core: 0.05mm(2mils)
Min SMT pitch: 0.25mm(10mils)
Impecance control: Single-ended 28Ω 7%
Differential 90Ω 7%
HDI: 3 + N + 3
Surface: Lead free HAL
Immersion gold
Flash gold
Immersion Silver
Immersion tin
OSP
STT(Selected Immersion Technology)
Material: Getek
Gil
Halogen free material(including high Tg)
Anti-CAF material
High Tg anti-CAF material
Special technology: Buried resistance
Technology with step slot & step hole
Application standed: IPC-6012 Class 2
PCB business:
Prototype: You can order any quantity you want, the normal delivery date to leave our facility after ordering is:
2 layers: 4 w. D
4 layers: 5 w. D
6-8 layers: 7 w. D ( without blind/buried holes )
10-12 layers: 12 w. D ( without blind/buried holes )
14-18 layers: 18 w. D ( without blind/buried holes )
20-22 layers: 25 w. D ( without blind/buried holes )
Models with blind/buried holes need 3 - 5days more.
Production: With regard to quantity less than 300sm order, our standard delivery day as
4 layers: 10 w. D;
6-8 layers: 15 w. D;
10-12 layers: 18 w. D;
14-18 layers: 20 w. D;
20-22 layers: 25 w. D;



We offer different types and try our best to satisfy your request.
Welcome to look over our website and contact us for details and drawing
