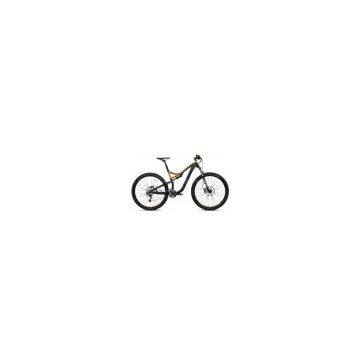

2013 Specialized Stumpjumper FSR Elite 29 Mountain Bike

SPECIFICATION :

FRAME
M5 hydroformed tubing, 29" geometry, tapered HT, PF30 BB, ISCG ’05, Command Post routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm travel
REAR SHOCK
FOX/Specialized remote Brain with AUTOSAG, inertia valve w/Trail Tune, BrainFade adjust, 194x48mm
FORK
FOX TALAS CTD Evolution 29, air spring, tapered steerer, Climb, Trail, Descend settings and reb adj., 15mm thru-axle, 130/105mm travel
HEADSET
1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings
STEM
Specialized XC Trail, 6061 alloy, 4-bolt, 6-degree rise, 31.8mm
HANDLEBARS
Specialized XC Mini-Riser, 7050 butted alloy, 720mm wide, 10mm rise, 10-degree backsweep, 6-degree upsweep, 31.8mm
GRIPS
Specialized Sip Grip, half-waffle aramid-infused, S/M: Regular, Others: XL thickness
FRONT BRAKE
Custom Avid Elixir 5 SL, hydraulic disc, alloy backed organic pads, HS-1 rotor. S/M: 180mm; L/XL 200mm rotor
REAR BRAKE
Custom Avid Elixir 5 SL, hydraulic disc, alloy backed organic pads, HS-1 rotor. S/M: 160mm; L/XL 180mm rotor
BRAKE LEVERS
Custom Avid Elixir 5 R SL, tool-less reach adj.
FRONT DERAILLEUR
SRAM X7, 10-speed, S3 direct mount for DMD, bottom pull
REAR DERAILLEUR
Shimano XTR Shadow Plus, 10-speed, SGS long cage
SHIFT LEVERS
Shimano SLX 10-speed, trigger
CASSETTE
SRAM PG-1050, 10-speed, 11-36
CHAIN
KMC X10, nickel plate, reusable Missing Link
CRANKSET
Custom SRAM carbon S-2200, 10-speed XC Trail double w/ carbon guard, PF30 spindle, removable spider, S: 170mm, Others: 175mm
CHAINRINGS
36/22, w/ carbon guard
BOTTOM BRACKET
SRAM PF30, OS press-in bearing, sealed cartridge
PEDALS
Resin Test Ride Pedals with toe clips, CEN std.
RIMS
Roval 29, alloy disc, 26mm wide, 32h
FRONT HUB
Specialized Hi Lo disc, sealed cartridge bearing, 15mm thru-axle, 32h
REAR HUB
New Specialized disc, 4x-sealed cartridge bearing, 12mm thru-axle, 32h
SPOKES
DT Industry, 2.0 stainless
FRONT TIRE
Specialized Purgatory Control, 2Bliss Ready, 60TPI, aramid bead, dual-compound, 29x2.3"
REAR TIRE
Specialized Ground Control, 2Bliss Ready, 60TPI, aramid bead, 29x2.3"
INNER TUBES
Ultralight presta
SADDLE
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
SEATPOST
Specialized Command Post BlackLite, 3 position, adjustable height w/air spring, remote operated, single bolt head 30.9mm, S:100mm travel, Others: 125mm travel
SEAT BINDER
Command Post 34.9mm clamp, 7050 hard anodized alloy collar, single bolt
