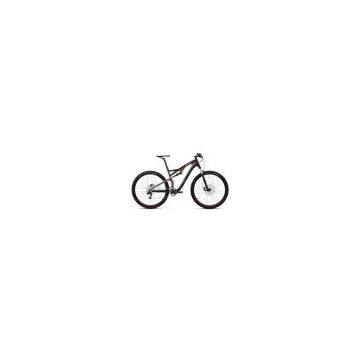

2013 Specialized Camber Expert Carbon EVO R 29 Mountain Bike

SPECIFICATION :

FRAME
FACT 9m front triangle, M5 rear triangle, 29" geometry, tapered HT, internal Command Post routing, 142mm dropouts, sealed cartridge bearing pivots, PF30 BB, disc only, replaceable derailleur hanger, bolt-on cable guides, 110mm travel
REAR SHOCK
Custom FOX Float CTD Evolution with AUTOSAG, Climb, Trail, Descend settings and rebound adj., 200x49mm
FORK
RockShox SID 29 RLT, Solo air spring, tapered alloy steerer, LO and rebound/threshold adj., standard QR dropouts, 110mm travel
HEADSET
1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings
STEM
Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, 6-degree rise, S: 70mm, M: 90, L:100, XL:110mm
HANDLEBARS
Specialized XC Mini-Riser, carbon, 720mm wide, 10mm rise, 10-backsweep, 6-upsweep, 31.8mm
GRIPS
Specialized Sip Grip, half-waffle aramid-infused, S/M: Regular, Others: XL thickness
FRONT BRAKE
Custom Formula T1 S, hydraulic disc, metallic pad, S/M:180mm rotor, Others: 200mm rotor
REAR BRAKE
Custom Formula T1 S, hydraulic disc, metallic pad, S/M:160mm rotor, Others: 180mm rotor
BRAKE LEVERS
Custom Formula T1 S, hydraulic disc, tool-less FCS and reach adj., SRAM compatible MiXmaster shifter mounts
FRONT DERAILLEUR
SRAM X7, 10-speed, S3 direct mount for DMD, bottom pull
REAR DERAILLEUR
SRAM X0, 10-speed, mid cage, Type 2
SHIFT LEVERS
SRAM X9, 10-speed, trigger, w/MatchMaker clamp
CASSETTE
SRAM PG-1050, 10-speed, 11-36
CHAIN
KMC X10, nickel plate, reusable Missing Link
CRANKSET
Custom SRAM carbon S-2200, 10-speed XC double, PF30 spindle, removable spider, S: 170mm, Others: 175mm
CHAINRINGS
38/24
BOTTOM BRACKET
SRAM PF30, OS press-in bearing, sealed cartridge
PEDALS
Resin Test Ride Pedals with toe clips, CEN std.
RIMS
Roval Control 29, alloy disc, 24mm wide, 32h
FRONT HUB
Roval Control 29, OS28 end caps, QR, 32h
REAR HUB
Roval Control 29 142+, DT Swiss alloy cassette body, 12mm thru-axle, 32h
SPOKES
DT Swiss Super Comp, 2.0/1.65/1.8 stainless
FRONT TIRE
S-Works Ground Control, 2Bliss Ready, 120 TPI, aramid bead, 29x2.1
REAR TIRE
Specialized Fast Trak Control, 2Bliss Ready, 60TPI, aramid bead, 29x2.0"
INNER TUBES
Ultralight presta
SADDLE
Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
SEATPOST
Specialized 2014 butted alloy, single bolt setback, 30.9mm, S/M: 350mm, Others: 400mm
SEAT BINDER
Specialized 7050 hard anodized alloy collar w/ QR, 34.9mm, black
