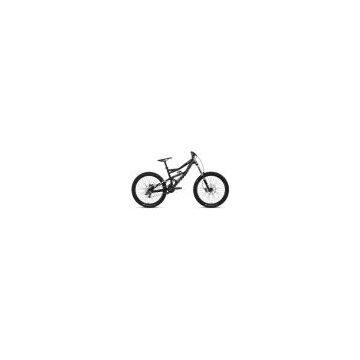

2013 Specialized Status II Mountain Bike

SPECIFICATION :

FRAME
M4 hydroformed tubing, 1.5" forged HT, ISCG mounts, 135mm rear spacing, full-cartridge bearing pivots, 200mm travel
REAR SHOCK
Custom FOX VAN RC, coil w/piggy back, compression and rebound adj., 8.75x2.75", S:400, M:450 L:500
FORK
RockShox Boxxer RC, alloy steerer, compression and rebound adj., 20mm Maxle DH thru-axle, XS/S: extra-soft spring, M: soft spring, L: medium spring, 200mm travel
HEADSET
Semi-integrated alloy cups for 1-1/2" HT and 1-1/8" steerer, cartridge bearings
STEM
Specialized Direct Mount stem, 6061 alloy, 31.8mm clamp, 4-bolt,
HANDLEBARS
Specialized DH low-rise bar, 6061 alloy, 750mm wide, 8-degree backsweep, 6-degree upsweep, 31.8mm
GRIPS
Specialized Sip Grip, half-waffle aramid-infused, S/M: Regular, Others: XL thickness
FRONT BRAKE
Custom Avid Elixir 5 R, metallic pad, HS-1 rotor, 200mm rotor
REAR BRAKE
Custom Avid Elixir 5 R, metallic pad, HS-1 rotor, 180mm rotor
BRAKE LEVERS
Custom Avid Elixir 5, hydraulic disc, tool-less reach adj.
FRONT DERAILLEUR

REAR DERAILLEUR
SRAM X7, 9-speed, short cage
SHIFT LEVERS
SRAM X5, 9-speed, trigger
CASSETTE
SRAM PG-950, 9-speed, 11-28
CHAIN
SRAM PG-971, 9-speed
CRANKSET
Custom SRAM Descendant, GXP, 7050 alloy arms, thin 36T ring, 165mm
CHAINRINGS
36T
BOTTOM BRACKET
SRAM GXP, outboard bearing
PEDALS
Specialized Bennies, 6061 alloy body, sealed cartridge, 4.5mm removable pins
RIMS
P-Disc, 32mm, 36h
FRONT HUB
Specialized Hi Lo disc, laser-etched logo, sealed cartridge bearing, 20mm thru-axle, 36h
REAR HUB
Specialized Hi Lo disc, sealed cartridge bearing, bolt-on, 36h
SPOKES
Stainless, 14g
FRONT TIRE
Specialized Butcher DH, 60 TPI, wire bead, soft dual-compound, 26x2.3"
REAR TIRE
Specialized Butcher DH, 60 TPI, wire bead, soft dual-compound, 26x2.3"
INNER TUBES
Standard Schraeder
SADDLE
Specialized DH, 8mm steel rails
SEATPOST
Specialized 6061 alloy, two bolt micro adjust, no offset, 30.9mm, 300mm
SEAT BINDER
Specialized 7050 hard anodized alloy, 34.9mm, single bolt
