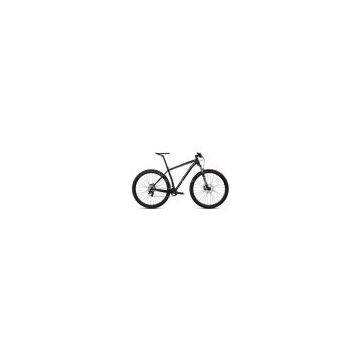

2013 Specialized Stumpjumper EVO 29 Mountain Bike

SPECIFICATION :

FRAME
M5 fully manipulated alloy, 29" geometry, tapered HT, PF30 BB, PM 140mm rear brake, 135mm dropouts, replaceable derailleur hanger
REAR SHOCK

FORK
FOX Float CTD Evolution 29, air spring, tapered steerer, Climb, Trail, Descend settings and reb adj., QR, 100mm
HEADSET
1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings
STEM
Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, 6-degree rise, S: 75mm, M: 90mm, L: 105mm, XL: 105mm
HANDLEBARS
Specialized XC Mini-Riser, 7050 butted alloy, 720mm wide, 10mm rise, 10-degree backsweep, 6-degree upsweep, 31.8mm
GRIPS
Specialized Sip Grip, half-waffle aramid-infused, 15.5/17.5: Regular, Others: XL thickness
FRONT BRAKE
Custom Magura MTS, hydraulic disc, Hi Friction pad, alloy caliper, Storm SL rotor, 180mm rotor
REAR BRAKE
Custom Magura MTS, hydraulic disc, Hi Friction pad, alloy caliper, Storm SL rotor, 160mm rotor
BRAKE LEVERS
Custom Magura MTS, alloy master cylinder/lever blade, hollow lever pivot, reach adj.
FRONT DERAILLEUR
e. thirteen XCX chain guide, seat tube mounted
REAR DERAILLEUR
SRAM X0 Type 2, 10-speed, mid cage
SHIFT LEVERS
SRAM X7, 10-speed, w/MatchMaker clamp
CASSETTE
SRAM PG-1030, 10-speed, 11-36
CHAIN
KMC X10, nickel plate, reusable Missing Link
CRANKSET
Custom SRAM S-1250, 7050 alloy arms, 33T single ring, PF30 spindle, 15.5": 170mm, Others: 175mm
CHAINRINGS

BOTTOM BRACKET
SRAM PF30, OS press-in bearing, sealed cartridge
PEDALS
Resin Test Ride Pedals with toe clips, CEN std.
RIMS
Roval 29, alloy disc, 28mm wide, 32h
FRONT HUB
Specialized Hi Lo disc, OS28 end caps, sealed cartridge bearing, QR, 32h
REAR HUB
Specialized Hi Lo disc, double-sealed cartridge bearing, QR, 32h
SPOKES
DT Swiss Industry, stainless, 14g
FRONT TIRE
S-Works Purgatory, 2Bliss Ready, 120 TPI, aramid bead, dual-compound, 29x2.3"
REAR TIRE
Specialized Ground Control, 2Bliss Ready, 60 TPI, aramid bead, 29x2.1"
INNER TUBES
Ultralight presta
SADDLE
Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
SEATPOST
Specialized 2014 butted alloy, single bolt setback, 27.2mm, 15.5/17.5" 350mm; Others: 400mm
SEAT BINDER
Specialized 7050 hard anodized alloy, 31.8mm, single bolt
