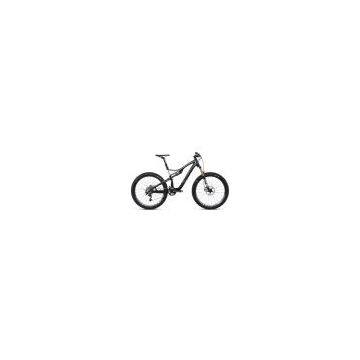

2013 Specialized S-Works Stumpjumper FSR Carbon Mountain Bike

SPECIFICATION :

FRAME
FACT 11m carbon front triangle, FACT IS construction, full FACT rear triangle, tapered HT, carbon PF30 BB, ISCG ’05, internal Command Post routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 140mm travel
REAR SHOCK
FOX/Specialized remote Brain with AUTOSAG, Kashima coating, inertia valve w/Trail Tune, BrainFade adjust, 194x51mm
FORK
FOX TALAS CTD Factory 26, Kashima coating, air spring, tapered alloy steerer, Climb, Trail, Descend settings w/Trail and reb adj., 15mm thru-axle, 140/120mm travel
HEADSET
1-1/8 and 1-1/2" threadless, Campy style upper with 1.5" lower, cartridge bearings
STEM
Syntace F109, 6-degree rise, 31.8mm clamp
HANDLEBARS
Specialized All-Mountain low-rise bar, uni-directional carbon, 720mm wide, 8-degree backsweep, 6-degree upsweep, 31.8mm
GRIPS
Specialized Sip Grip, half-waffle aramid-infused, S/M: Regular, Others: XL thickness
FRONT BRAKE
Shimano XTR hydraulic disc, post mount direct, 6-bolt, resin pad, Ice Tech, S/M:180mm rotor, Others: 203mm rotor
REAR BRAKE
Shimano XTR hydraulic disc, post mount direct, 6-bolt, resin pad, Ice Tech, S/M:160mm rotor, Others: 180mm rotor
BRAKE LEVERS
Shimano XTR Trail Servo Wave
FRONT DERAILLEUR
Shimano XTR M985, E-type for DMD, top-swing, dual-pull
REAR DERAILLEUR
Shimano Shadow Plus XTR, 10-speed, GS mid-cage
SHIFT LEVERS
Shimano XTR, 10-speed, w/ I-Spec clamps
CASSETTE
Shimano XTR M980, 10-speed, 11-36
CHAIN
Shimano XTR 980
CRANKSET
Specialized OS carbon, 10-speed, XC Trail double w/ carbon guard, S: 170mm, Others: 175mm
CHAINRINGS
38/24, w/ carbon guard
BOTTOM BRACKET
SRAM PF30, OS press-in bearing, sealed cartridge
PEDALS
Resin Test Ride Pedals with toe clips, CEN std.
RIMS
Roval Control Trail SL, carbon disc, 27mm, 24/28h
FRONT HUB
Roval Control Trail SL, carbon/alloy disc, 15mm thru-axle end caps, 24h
REAR HUB
Roval Control SL 142+, DT Swiss Star Ratchet, 12mm thru-axle, 28h
SPOKES
DT Swiss Revolution 2.0/1.5/2.0mm stainless
FRONT TIRE
Specialized Purgatory Control, 2Bliss Ready, 60TPI, aramid bead, dual-compound, 26x2.3"
REAR TIRE
Specialized Ground Control, 2Bliss Ready, 60TPI, aramid bead, 26x2.3"
INNER TUBES
Ultralight presta
SADDLE
Body Geometry Henge Expert, Ti rails, 143mm
SEATPOST
Specialized Command Post BlackLite, 3 position, adjustable height w/air spring, remote operated, single bolt head 30.9mm, S:100mm travel, Others: 125mm travel
SEAT BINDER
Command Post 34.9mm clamp, 7050 hard anodized alloy collar, single bolt
