Diam10~500mm White Ptfe Tube

Diam10~500mm White Ptfe Tube photo-1
Diam10~500mm White Ptfe Tube photo-2

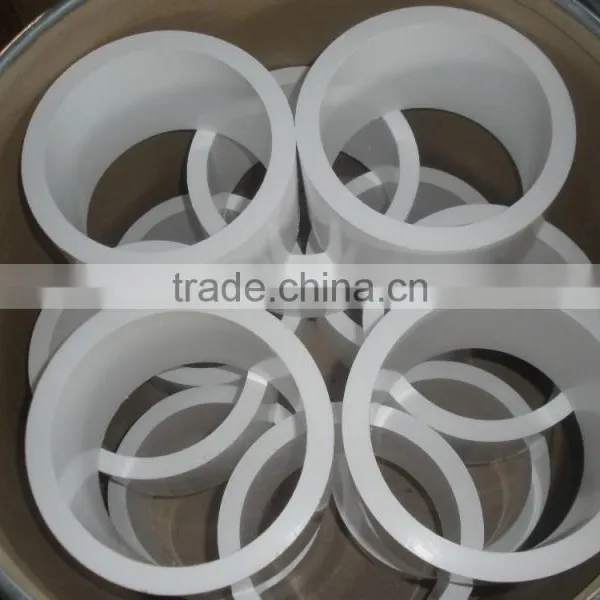

Diam10~500mm White Ptfe Tube photo-3
Diam10~500mm White Ptfe Tube photo-4
Diam10~500mm White Ptfe Tube photo-5
Diam10~500mm White Ptfe Tube photo-6
US$ 6.5 - 7.5 MOQ: 50 Kilograms
Key Specifications
Get Latest Price
Brand Name:
SENRONG
Model Number:
senrong-1
Material:
Other, PTFE
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Tianjin/Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Brand Name SENRONG
Model Number senrong-1
Material Other, PTFE
Specification any sizes
Length 10mm to 100m
Thickness 0.5mm to 50mm

diam10~500mm white ptfe tube

TYPES OUTSIDE DIAMETER  MM WALL THICKNESS  MM LENGTH  MM
pressed pipe 1~25 0.1~2.5 produced under requirements
extruded pipe 25~200 1.5~8 produced under requirements
die pressed pipe 25~1200 5~500 100~300

1.Use virgin ptfe resin to make

2.The size is :a)OD1mm~25mm,wall thickness 0.1mm~2.5mm

 b)OD25mm~400mm,wall thickness1.5mm~8mm

 c)OD25~1200mm,wall thickness5mm~500mm

3.tolerance :-0.1~+0.1mm

4.Color:natural white,red,yellow,black.

5.Surfact:smooth,no impurities,no black spot.

6.Wall thickness is uniform.

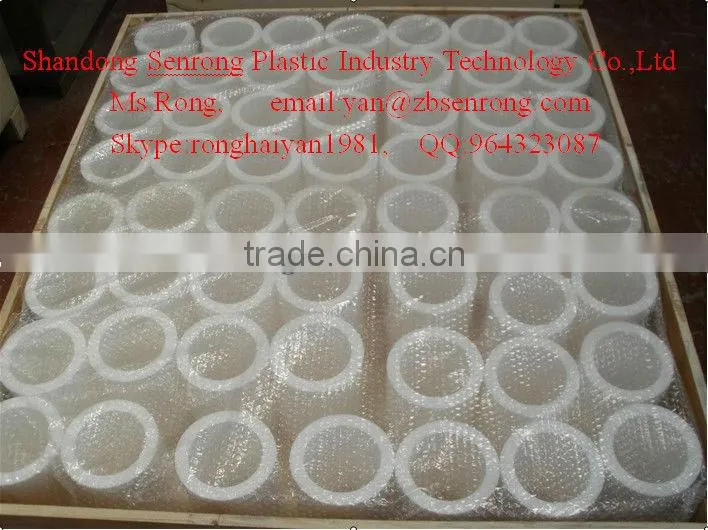

7.Perfect package :inside is plastic paper ,outside is fumigation wooden box.

8.Delivery time is usually 10days,as can according to the fact quantity to deliver.

PROPERTIES UNIT RESULT
apparent density g/cm3 2.10~2.30
tensile strength(min) Mpa 18
crack elongation(min) % 230

There are three types of PTFE pipes:for a pipe with outside diameter 1~25mm and thickness of wall 0.1~2.5mm,we choose imported polymized ptfe resin and process it by pressing:for a pipe with outside diameter25~200mm and thickness of wall 1.5~8mm,we choose suspended ptfe resin and process it by extruding;for a pipe with outside diameter25~1200mm and thickness of wall 5~500mm,we process it by die pressing.
