Help CenterGrade A Ptfe Extruded Tube/8mm Ptfe Tube
Related Products
TYPES |
OUTSIDE DIAMETER MM |
WALL THICKNESS MM |
LENGTH MM |
pressed pipe |
1~25 |
0.1~2.5 |
produced under requirements |
extruded pipe |
25~200 |
1.5~8 |
produced under requirements |
die pressed pipe |
25~1200 |
5~500 |
100~300 |
1.Use virgin ptfe resin to make
2.The size is :a)OD1mm~25mm,wall thickness 0.1mm~2.5mm
b)OD25mm~400mm,wall thickness1.5mm~8mm
c)OD25~1200mm,wall thickness5mm~500mm
3.tolerance :-0.1~+0.1mm
4.Color:natural white,red,yellow,black.
5.Surfact:smooth,no impurities,no black spot.
6.Wall thickness is uniform.

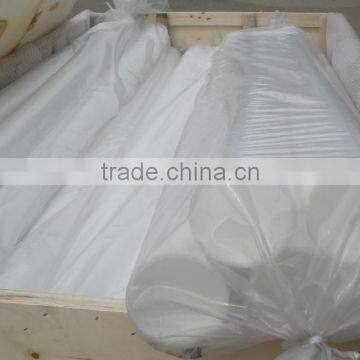

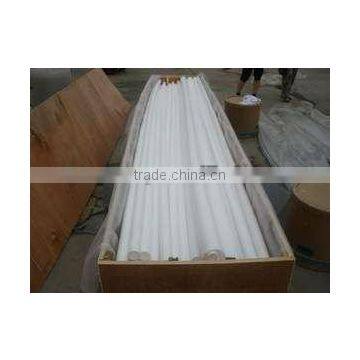

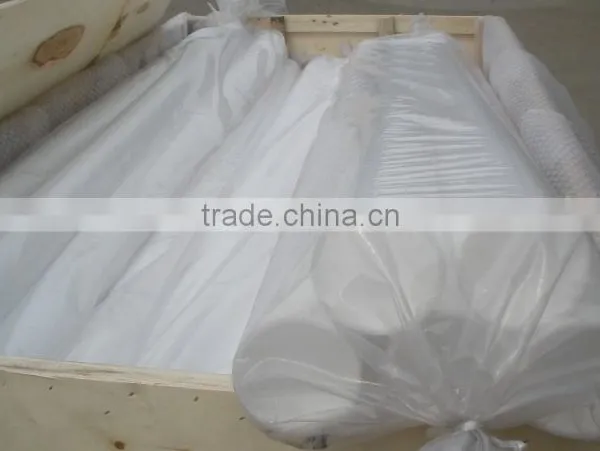

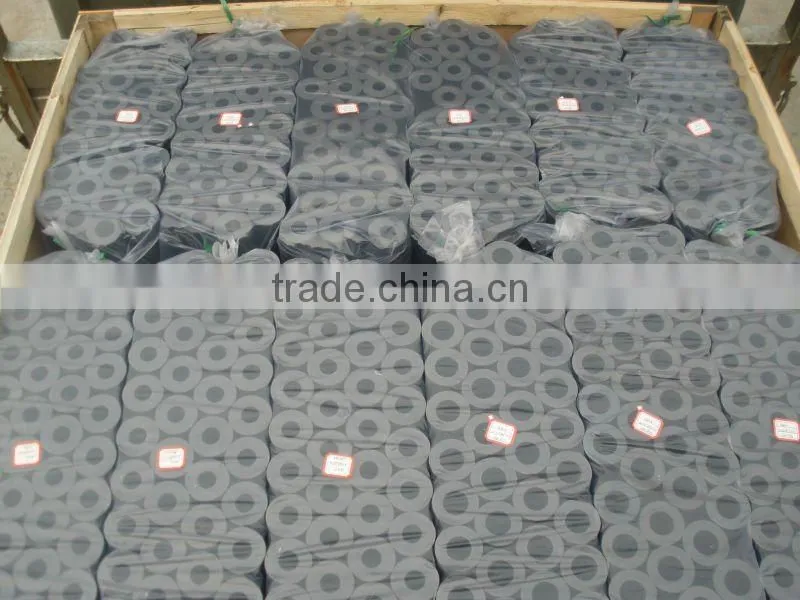

7.Perfect package :inside is plastic paper ,outside is fumigation wooden box.
8.Delivery time is usually 10days,as can according to the fact quantity to deliver.
PROPERTIES |
UNIT |
RESULT |
apparent density |
g/cm3 |
2.10~2.30 |
tensile strength(min) |
Mpa |
18 |
crack elongation(min) |
% |
230 |
There are three types of PTFE pipes:for a pipe with outside diameter 1~25mm and thickness of wall 0.1~2.5mm,we choose imported polymized ptfe resin and process it by pressing:for a pipe with outside diameter25~200mm and thickness of wall 1.5~8mm,we choose suspended ptfe resin and process it by extruding;for a pipe with outside diameter25~1200mm and thickness of wall 5~500mm,we process it by die pressing.
