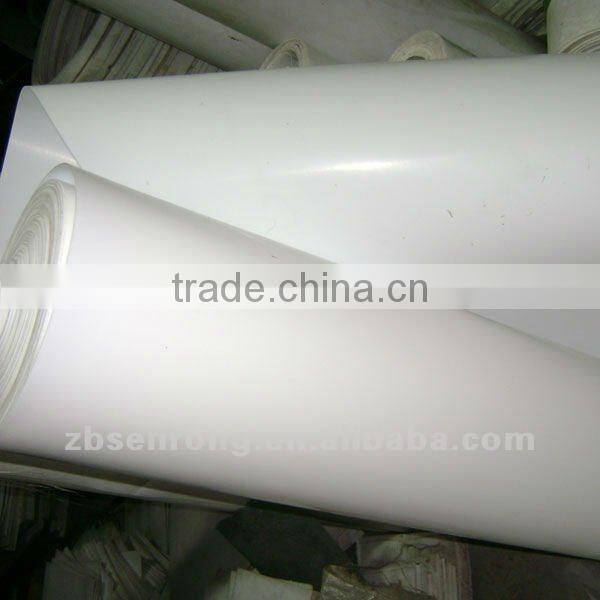

Help CenterPtfe Skived Sheet
Related Products
Specifications
highly dielectric ,chemical resistance ,not aging ,wide range of operation temperature .1, Feartures:
PTFE resin is first moulded into workblank and then skived .The PTFE resin skived sheet &tape are highly dielectric..Chemical resistance and not aging . They have a wide range of operation temperature.
2, Usage:
Lining ,sealing and oilless lubricating material and dielectric at any frequencies.Capacitor dielectric ,wire isolation , electrical instrument isolation.
PTFE plate &belts:
Main properties:
Property |
Unit |
Result |
|
Chinese material |
Import material |
||
Apparent density |
g/cm³ |
2.10-2.30 |
2.10-2.30 |
Tensile strength ≥ |
Mpa |
20 |
28 |
Crack elongation ≥ |
% |
250 |
300 |
Dielectric strength≥ |
Kv/mm |
10 |
12 |
Specification :
Property |
Code name |
Skived sheet |
Thickness(mm)0.2~7mm Width(mm)850,1000,1200,1500,1800,2000 Length(mm) ≥1000 |
Skived tape |
Thickness(mm)0.2~4 Width100~500 length≥1000 |
PTFE film
Main properties:
Property |
Unit |
High-density |
Semi-density |
common |
Tensile strength≥ |
Mpa |
≥30 |
≥20 |
≥10 |
Elongation at rupture |
% |
≥30 |
≥60 |
≥100 |
1MHZ dielectric loss tengent≥0.01 |
|
2.5x104 |
- |
- |
1MHZ dielectric constant |
|
Average1.8-2.2 |
- |
- |
Dc breakdown voltage (normal temperature) |
Kv/mm |
Average200 Minimum40 |
Average60 Minimum6 |
Average30 |
