PTFE Skived Sheet Manufacturer
1 Description:
Skived PTFE Sheet is manufactured by technology of compacting, sintering, rotary cutting with PTFE granular resin. As PTFE has a very low co-efficient of friction, so the surface of skived teflon PTFE sheet has similar friction levels to ice. Skived PTFE Sheet can work at -180°C ~+260°C and is the best electrical insulator of all known plastics.
2 Features:
1.Drug resistant
2.Corrosion resistant
3.Temperature resistant
4.Abrasion resistant
5.Voltage resistance
3 Fileds:
Skived PTFE Sheet can be used as lining, seal components, wire isolation, slide block, gasket, seal, dielectric material, etc.
4 Technical Data:
Property |
Unit |
Result |
Apparent Density |
g/cm3 |
2.10-2.30 |
Tensile Strength ≥ |
MPa |
20 |
Crack Elongation ≥ |
% |
250 |
Dielectric Strength |
KV/mm |
10 |
Working Temperature |
°C |
-180°C ~ + 260°C |
5 Specifications:
Length(mm) x Width(mm) |
Thickness(mm) |
|
Nominal |
Tolerance |
|
150 x 150 |
1.0-30 |
±0.30 ~ ±0.50 |
250 x 250 |
1.5-30 |
±0.30 ~ ±0.50 |
300 x 300 |
1.5-30 |
±0.30 ~ ±0.50 |
50 x 450 |
1.5-30 |
±0.30 ~ ±0.50 |
600 x 600 |
2-30 |
±0.30 ~ ±0.50 |
800 x 800 |
3-30 |
±0.30 ~ ±0.50 |
1000 x 1000 |
3-30 |
±0.30 ~ ±0.50 |
200 x 1200 |
3-30 |
±0.30 ~ ±0.50 |
1000 x 2000 |
5-30 |
±0.30 ~ ±0.50 |
1500 x 1500 |
5-30 |
±0.30 ~ ±0.50 |
1800 x 1800 |
8-30 |
±0.30 ~ ±0.50 |
2000 x 2000 |
8-30 |
±0.30 ~ ±0.50 |
Remarks:
We can also produce Skived PTFE Sheet in other sizes and thickness according to customer's specific requirements.

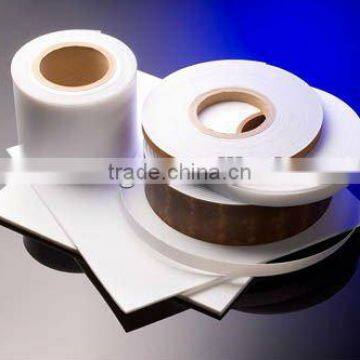

6 Photos:
