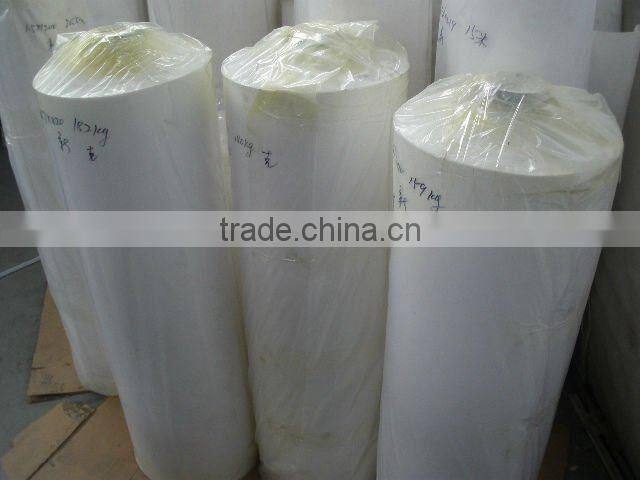

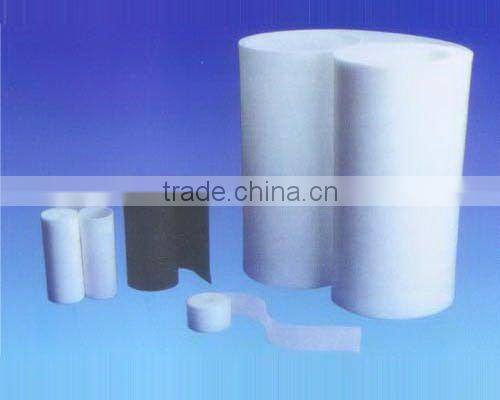

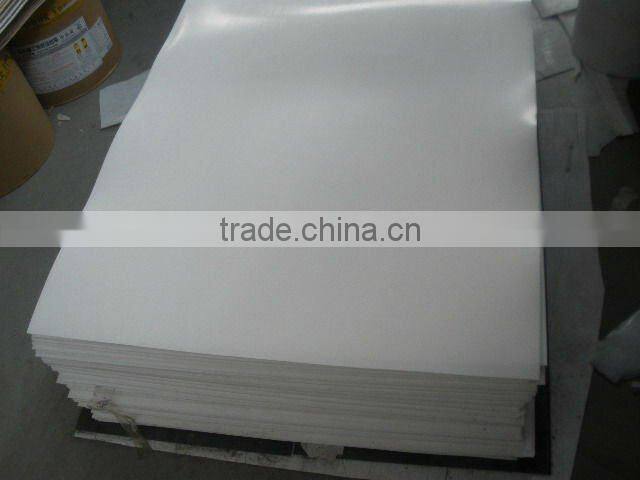

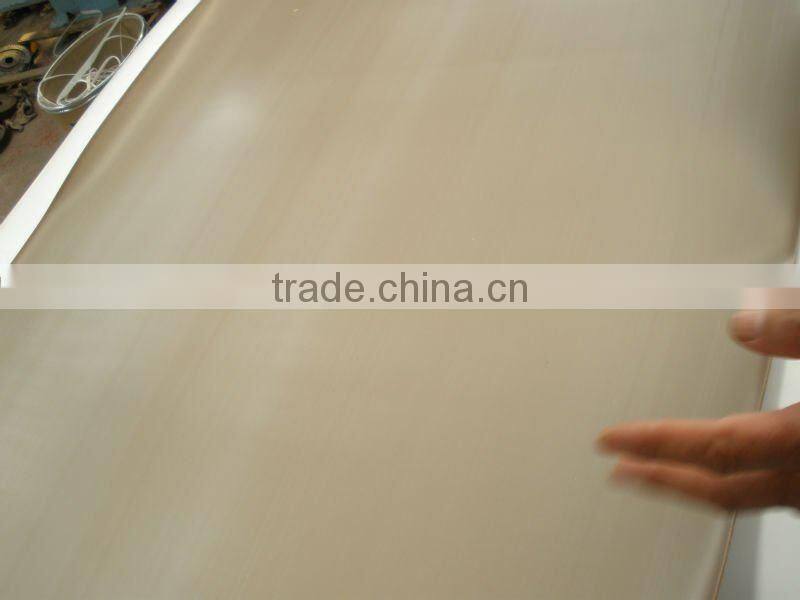

0.5mm~6mm Ptfe Skived Sheet/white Ptfe Skived Sheet

Name: 0.5mm~6mm Ptfe Skived Sheet/white Ptfe Skived Sheet
Brand: SENRONG
SKU: 147708152
Availability: InStock

US$ 8 - 10 MOQ: 50 Kilograms

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

SENRONG

Model Number:

senrong-3

Shandong Senrong New Materials Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao/tianjin/ningbo/shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name SENRONG

Model Number senrong-3

Specifications

100%virgin or filled recycled ptfe
Keep good quality and tolerance
Perfect package
Can make any color
Temperature:-180~+260

1.Use virgin or part recycled ptfe resin to make

2.The size :length and width:100x100~2000x1000mm,

3.thickness tolerance :0~+6%,is uniform,

4.Color:natural white,red,yellow,black and so on.

5.Surfact:smooth,no impurities,no black spot.is flat.

6.Perfect package :inside is plastic paper ,outside is fumigation wooden box.

7.Delivery time is usually 10days,as can according to the fact quantity to deliver

8.Density:2.10~2.30g/cm³

9.Tensile strength :20Mpa

10.Crack elongation:200%

Molded sheet Main properties
Properties	Unit	Result
Appatent density	g/cm³	2.10~2.30
Tensile strength(min)	Mpa	15.0
Crack elongation(min)	%	150
Dielectric strength(min)	Kv/mm	10

Skived sheet Main properties
Property	Unit	Result
Apparent density	g/cm³	2.10~2.30
Tensile strength	Mpa	20
Crack elongation	%	250
Dielectric strength	Kv/mm	10

Molded sheet specifications
Length(mm) x Width(mm)	Thikcness
	Nominal	Tolerance
100x100	1.0~30	-0.30~+0.50
150x150	1.5~30	-0.30~+0.50
250x250	1.5~30	-0.30~+0.50
300x300	1.5~30	-0.30~+0.50
500x500	2~30	-0.30~+0.50
600x600	3~30	-0.30~+0.50
800x800	3~30	-0.30~+0.50
1000x1000	3~30	-0.30~+0.50
1200x1200	3~30	-0.30~+0.50
1500x1500	5~35	-0.30~+0.60
2000x1000	5~35	-0.30~+0.60
