Home > Products > PTFE Gasket > PTFE gasket joint sealant
PTFE gasket joint sealant
- 100000 Piece / Pieces per Month
- Qingdao
- Credit Card
- Insulating gasket M10X30 for Bangladesh power system
- L4949EP car engine control unit IC Auto ECU board chip
- 91955B Diesel EDC17 Computer Board Control ECU Processor Parts
- 35160 160DOWQ BMW Car computer IC Car dashboard chip
- 780851AGC(A) Car Computer Board Chip Auto ECU Repair IC Chip
- TDF8541SD Power Amplifier Speaker Car Amplifier Computer ECU IC
Product Details
Place of Origin: | Shandong, China | Brand Name: | Senrong | Model Number: | SR-G |
Material: | Other, PTFE | Shape: | Other, Ring Gasket, Ring Gasket | Standard or Nonstandard: | Standard |
Product Description

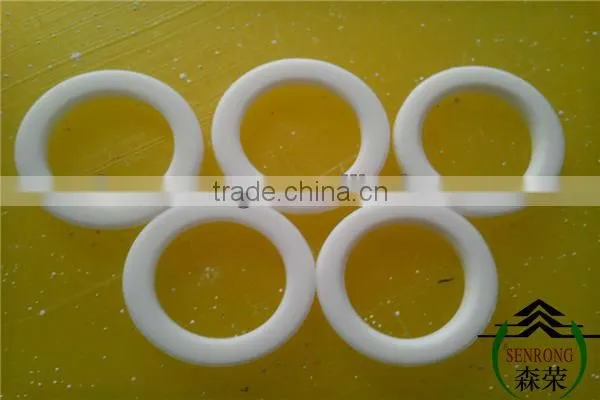

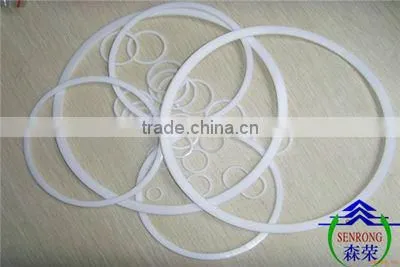

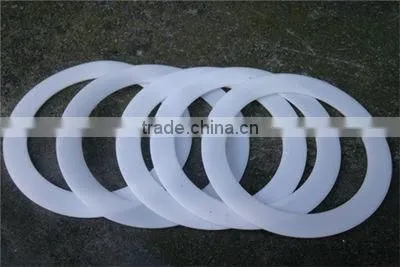

PTFE gasket joint sealant
1. PTFE Specifications
Nominal(Dg) |
| Seat(mm) |
| Gasket of stem (mm) |
|
|
| OD | ID | High | OD | ID | High |
15 | 24 | 15 | 5 | 20 | 12 | 4 |
| 23 | 15 | 4.5 | 14 | 9 | 4.8 |
20 | 32 | 20 | 5 | 20 | 12 | 4 |
| 28 | 20 | 5 | 17 | 11 | 5.5 |
25 | 36 | 25 | 5.5 | 24 | 16 | 5 |
|
|
|
| 22 | 14 | 4 |
32 | 44 | 32 | 5.5 | 24 | 16 | 5 |
|
|
|
| 28 | 18 | 5 |
40 | 54 | 40 | 6 | 30 | 20 | 5 |
|
|
|
| 29 | 18 | 5 |
50 | 64 | 50 | 6.5 | 34 | 24 | 5 |
|
|
|
| 29 | 18 | 5 |
65 | 95 | 65 | 14 | 38 | 28 | 5 |
80 | 105 | 80 | 14 | 38 | 28 | 5 |
| 115 | 80 | 16 |
|
|
|
100 | 132 | 100 | 16 | 48 | 32 | 6 |
150 | 190 | 150 | 22 | 50 | 38 | 6 |
2. Technical Indexes
Properties | Unit | Result |
Apparent density | g/cm3 | 2.10-2.30 |
Tensile strength (min) | MPa | 30 |
Ultimate elongation (min)(min) | % | 300 |
3. Ourselves
Our factory-Shandong Senrong Plastic established in 2006; we are engaged in PTFE Products. our main products includes Rod, Sheet, Pipe, Film, Gasket, Filled Products, Sealing Products, Precision PTFE Machining Parts etc; 85% of our products are for exportation, we have our own right to import and export; Our main market are Europe, Asia, South and North America, Australia, Africa, more than 50 countries. Our factory is close to the biggest PTFE Raw Material Supplier---Shandong Dongyue Group, only 2.5km away. Depend on this advantage, we already become the biggest PTFE products manufacturer in North of China.
If you have some interests , please contact us at any time. We’ll give you a early reply! According to your requirement, we are ready to serve you at best quality and competitive price on every product . We guarantee best service and best timely delivery and do our best to meet your inquires at any time. It is our honor to develop the business relationship and friendship with your esteemed
company for long terns basis.
4.Workshop
We have own modern standard workshop,advanced equipments in the production of PTFE Finished Products and PTFE Thread Seal Tape.The professional and technical team engaged in the research of PTFE thread seal tape for many years,as well as a large group of well-trained production operators,so that we can produce high standard quality products to meet customer demand.
5.Characteristic
Our product is an ideal material for sealing,which is widely applied to construction machinery,chemical industry and other areas,especially in pipe linking system.With general excellent characteristics such as high and low temperature resistance,corrosion resistance,non-stick,sealing and low friction coefficient.It can be widely used under all conditions for a long time.
6.Our advantage
1.Raw material use 100% PTFE
2.Good service
3.Competitive price
4.Fast delivery
5.High quality products
7.Our packaging
8 Photos
