CO2 double-head laser cutting engraving machine for leather,plastic,acrylic XGY-D960
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
Product Details
Brand Name: | XGY | Place of Origin: | China | Model Number: | XGY-D960 |
Product Description
Certification:CE

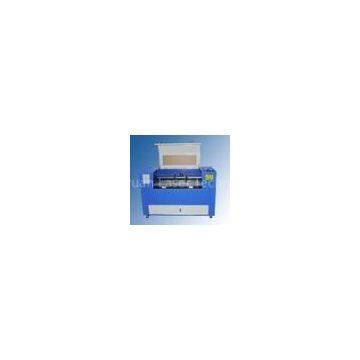

CO2 double-head laser cutting engraving machine for leather,plastic,acrylic XGY-D960
CO2 double-head high-speed laser cutting & engraving machine is developed as required by customers. It combines site production operation to completely develop the movement control performance and laser processing effect. With a special interactive design, it realizes free shift of double laser ends even is offline. Its cutting effect and doubled processing efficiency definitely feature cost saving and production promotion. It leads the position change of laser head by means of motor and belts or screw driving to achieve the laser cutting function. In addition, it can easily design graphs by means of computer, with high cutting precision and rapid speed.
It uses the stepping motor imported from Japan as the driving unit and X and Y axle three guide ways imported from Korea plus the laser lens imported from America, which can completely activate precision and speed.
Applications:
Applicable industry: Shoe materials, leather garment, trademark processing, embroidering, advertisement & decoration, wood processing, packing & printing, laser mold, decoration industry, printing & gold stamping template, crafts and gifts industry, electrics & electronic appliance industry, model industry (building model, airplane & marine model and wooden toys).
Applicable material: Non-metal materials as cloth, tiles, paperboard, papers, leather, PU leather, trademark embroidering, plastics, bamboo & wooden products, woods, organic glass, acrylic, jade, shell, ox horn, animal sebum, double-color sheet, ABS board, PVC board, fiber and composite materials.
Specifications:
Machine configuration
Parts Name |
Description |
Quantity |
Software. and Control |
Taiwan laser cutting system and control system |
One |
Guide Rail |
High-speed adjustable guide rail imported from Korea |
Three |
Motor |
Step motor imported from Japan |
Two |
Laser power supply |
China laser power supply |
Two |
Belt |
Belt imported from American |
Four |
Lens |
Lens imported from American |
Five |
Cooling Box |
Cooling box (3000 type) for laser cutter |
Two |
Induced Draft Fan |
Centrifugal induced draft fan |
One |
Air Pump |
Hailea electromagnetic air compressor |
One |
Laser Tube |
Chengdu laser tube |
Two |
Work table |
Honeycomb |
One |
Chassis |
Chassis Welding of cold rolled plate |
One |
Technical Parameter
Product model |
XGY-D960 |
Laser power: |
60W/80W/100W/130W/150W |
Cutting scope: |
900mm*600mm |
Laser Types |
CO2 sealed glass tube laser/ CO2 metal tube laser, water-cooled, 10.6μm |
|
0-100% software setting |
Precision of Positioning |
≤0.01mm |
Max. Width of work piece: |
