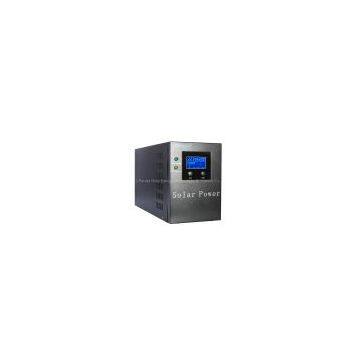

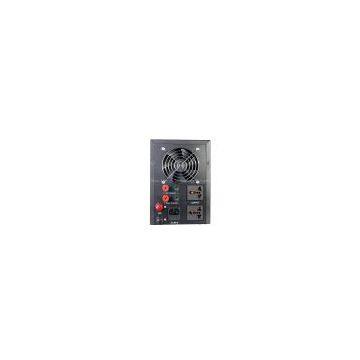

Help CenterSpecification of Solar Power Inverter With Built-in Solar Controller I-P-XDC-1500VA 24V
Related Products
-
Pure Sine Wave Inverter With Battery Charger & UPSUS$ 528 - 528MOQ: 1 Set -
Industrial Pure Sine Wave Inverter (UPS) SpecificationUS$ 600.21 - 600.21MOQ: 1 Set
-
Car Power InverterUS$ 12.79 - 12.79MOQ: 1 Piece
-
High Frequency Pure Sine Wave Inverter 3000WUS$ 398 - 398MOQ: 1 Set
-
214054 HOOKNegotiableMOQ: 20000 Pieces
1.The components of products
1)High quality low frequency pure sine wave inverter(with battery charge and UPS function ) ;
2)High quality solar controller
2.Application scope
1)Solar off-grid energy generation system
2)Solar energy/utility power complementary power generation system(include AC first and DC first.)
3.Functions
1)Solar energy energy intelligent control charge function;
2)Convert function ,wide DC input range to pure sine wave AC;
3)Automatical Voltage Regulation,accurate pure sine wave AC voltage output
4)Charge function(only for the models with AC first)
5)The complementary function of Solar and utility ensure the uninterrupted output.
4.Features
1)Easy to install. To configure a solar system,customers only connect it with solar panels and batteries.
2)CPU management,intelligent controller, module structure;
3)LED,LCD display could show each kind of parameters of the machine directly, comprehensively;
4)Multi-functional.Customers don't need buy extra solar controller,charger and voltage stabilizer;
5)External batteries design.The standby time could be extend. Customers could decide how many batteries to be connected according to the strength of local sunshine power;
6)With strength overload ability and strong load adapt ability,this machine can be widely used for resistant, sensitive, capacitive and other kinds of loads such as motors,air conditioning, electric drill, fluorescent lamp, HID lamps etc; it can be worked continuously for long time.
7)Adopting the circuit design of low frequency pure sine wave,the machine owns the advantages of high stability,low failure rate,long operating life,easy to maintain.And it is no problem to use for more than 5 years with proper maintenance;
8)Perfect protection functions:over temperature, over load, high voltage, low voltage and short-circuit,etc
9)The product have CE marking in compliance with the following European directives:EMC and LVD.They also have passed RoHS and CCC certifications.
10) We provide 2 years warranty and free life-long technical support;
|
Model |
I-P-XDC-1500VA |
|
|
Rated solar system voltage |
24V |
|
|
Applicable battery types |
Lead-acid or gel |
|
|
Switch control function |
A key type switch |
|
|
LCD and LED Display |
Inverter working state, |
|
|
Inverter |
Rated Output Capacity(VA) |
1500VA (Full Output Power 1000W ) |
|
DC Voltage Protection |
Under Voltage Shutoff |
21V |
|
Over Voltage Shutoff |
30V |
|
|
Output Wave Form |
Pure Sine Wave |
|
|
Rated AC Output Voltage |
220V(±3%)or 110V(±3%) |
|
|
Rated AC Output Frequency |
50 Hz(±0.2)or 60 Hz(±0.2) |
|
|
Total Harmonic Distortion(THD) |
<3% |
|
|
AC Charge Current |
0~15A |
|
|
Transfer Time (Output UPS,Inverter First or AC First ) |
<5ms |
|
|
Inverter Efficiency |
>90% |
|
|
Overload Capacity |
120%,60s |
|
|
Inverter Protection Functions |
Battery under voltage, Battery over voltage, Output overload, |
|
|
Controller |
Input Voltage Range(DC) |
24V-40V |
|
Photovoltaic power generation maximum charge current |
25A |
|
|
Controller protection functions |
Panels reverse connect protection, short circuit protection, lightning protection, |
|
|
Battery under voltage protection |
21.6V(Equipped with lead-acid battery, gel battery)shut off discharging |
|
|
Battery under voltage recover protection |
24.4V(Equipped with lead-acid battery, gel battery)Restore power |
|
|
Battery over charge protection |
25.6V(Equipped with lead-acid battery, gel battery)shut off charging |
|
|
Battery over charge recover protection |
27.2V(Equipped with lead-acid battery, gel battery)restore charging |
|
|
Work environment |
Working Ambient Temperature |
-20℃ ~ +50℃ |
|
Relative humidity, no condensation |
<95% |
|
|
The highest elevation |
5000 m |
|
|
Insulation intensity |
1500Vac,60s |
|
|
Noise(1m) |
1m |
≦ 40dB |
|
Size W×D×H(mm) |
390*140*210 |
|
|
Packing size W×D×H(mm) |
480*205*275 |
|
|
Net weight (kg) |
14 |
|
|
Gross weight (kg) |
16 |
All the parameters above come from our former customers’ requirements,if you have special need,we can change the parameter only for you,such as DC voltage, charging current ect.
