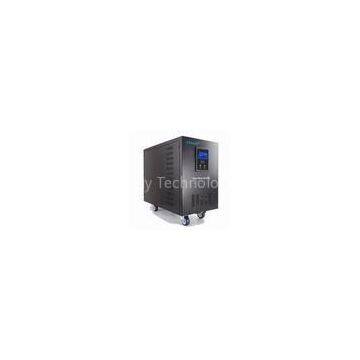

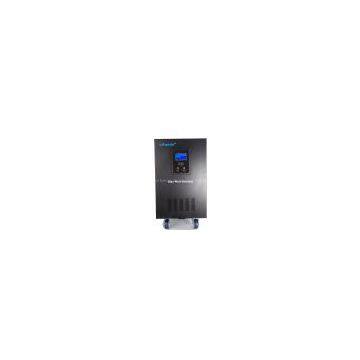

Help CenterIndustrial Pure Sine Wave Inverter (UPS) Specification
Related Products
-
Specification of Solar Power Inverter With Built-in Solar Controller I-P-XDC-1500VA 24VUS$ 199.65 - 199.65MOQ: 1 Set -
Pure Sine Wave Inverter With Battery Charger & UPSUS$ 528 - 528MOQ: 1 Set
-
Car Power InverterUS$ 12.79 - 12.79MOQ: 1 Piece
-
High Frequency Pure Sine Wave Inverter 3000WUS$ 398 - 398MOQ: 1 Set
-
214054 HOOKNegotiableMOQ: 20000 Pieces
Features:
1, Pure sine wave AC output;
2, Intelligent program control, CPU management;
3, With LCD display, users can know operation status of the whole system
clearly;
4, With multi-functions, extra charger is not needed and electric appliances can
be protected (AVR, UPS);
5, Wide applicable scope, can be wide used for all kinds of occasions, such as outdoor area without electricity, industrial area, household, office, supermarket, hospital, bank, solar system, wind energy systems etc;
6, With external battery connection, it’s convenient for users to expand use time and back-up power time;
7, With super load carrying ability and high load capacity, this inverter can not only carry resistance load; but also can carry various kinds of inductive loads, such as motor, air conditioner, electric drills, fluorescent lamp, gas lamp, etc;
8, With high quality, low frequency circuit design, stable system, low failure rate and long service life,normally under proper operation, this machine can last more than 3 years;
10, Approvals: CE / EMC / LVD/ RoHS ;
11, Two years warranty, lifelong technical supports;
Technical Specification:
|
I-P-XD-6000VA |
||
|
Rated output capacity(Full Power) |
4000W |
|
|
Peak Power |
8000W |
|
|
Battery voltage(DC) |
48V or 96V (Optional) |
|
|
AC Input |
Voltage(AC) |
220V±35% or 110V+35%(Optional) |
|
Frequency |
50Hz±3% or 60Hz±3% |
|
|
Output(AC) |
Voltage |
220V±3% or 230V±3 or 240V±3% or 100V±3% or 110V±3% (Optional) |
|
Frequency |
50Hz±0.5 or 60Hz±0.5(Optional) |
|
|
Charge Battery |
Charge circuit |
0~20 A |
|
Charge time |
By the capacity of battery |
|
|
Battery protection |
Automatic self-test. charge and discharge protection |
|
|
Display |
Mode |
LCD |
|
Information |
Input voltage, Output voltage, Frequency, Battery capacity, Load capacity State parameters |
|
|
Output wave type |
Pure sine wave (Waveform distortion≤3) |
|
|
Overload capacity |
120% 60s,130% 10s, |
|
|
Inverter efficiency |
Average 90% |
|
|
Transfer time |
≤ 5ms |
|
|
Communication port |
RS232 |
|
|
Protection function |
Output overload protection, Output short-circuit protection, Battery reverse polarity protection, Input high-voltage protection , Input low-voltage protections, Overheat protection; |
|
|
Using environment |
Temperature |
-10℃~60℃ |
|
Humidity |
10%~90%,Non-condensing |
|
|
Altitude |
≤4000m |
|
|
Size W×D×H(mm) |
465*245*465 |
|
|
Packing size W×D×H(mm) |
500*250*500 |
|
|
Net weight (kg) |
50 |
|
|
Gross weight (kg) |
60=52+ 8( wooden case ) |
We accept order with special specifications
The specification is only for reference. Subject to change without prior notice.
We are professional R&D and manufactory enterprise of inverter and UPS. With large scale business covering markets all over the world ,I-Panda is a global supplier and provided OEM service based on customers’ specific demands. We are certified by ISO9001 and hold CE and RoHS certifications. Welcome to be our distributo
r!
