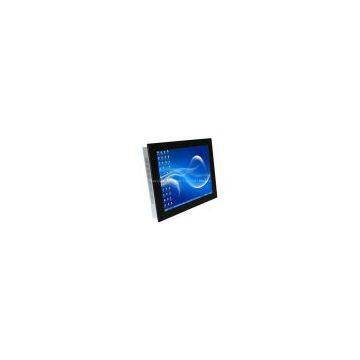

Sell IP65 10.4 Inch Intel Atom D525 Industrial Touch Panel PC

Sell IP65 10.4 Inch Intel Atom D525 Industrial Touch Panel PC thumbnail-1
Sell IP65 10.4 Inch Intel Atom D525 Industrial Touch Panel PC thumbnail-2
Sell IP65 10.4 Inch Intel Atom D525 Industrial Touch Panel PC thumbnail-3
Sell IP65 10.4 Inch Intel Atom D525 Industrial Touch Panel PC photo-1
Sell IP65 10.4 Inch Intel Atom D525 Industrial Touch Panel PC photo-2
Sell IP65 10.4 Inch Intel Atom D525 Industrial Touch Panel PC photo-3
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
SUNPC
Place of Origin:
China
Model Number:
IPPC-104D-2R
Contact Supplier Request Quote Chat Now
Shenzhen SUNPC Technology Co. Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SUNPC
Place of Origin China
Model Number IPPC-104D-2R

Shenzhen Sunpc Technology Co., Ltd is a manufactuer and have our own factory, we provide many kinds of industrial panel pcs , such as panel mount industrial panel pc, rackmount industrial panel pc, high performance industrial panel pcs, from 8.4" to 19", and also provide industrial lcd monitor, fanless embedded computer,mini-itx motherboard ect

10.4" intel Atom D525 industrial Panel PC IPPC-104D-2R

Warranty: 18 months

Feature:
10.4" LCD Panel PC, 800x600 pixels, 300 CD/m2 brightness
Intel Atom D525 dual-core processor 1.8GHz/ with 667 MHz FSB
Resistive Touch screen
Front 6mm Aluminium magnesium alloy with IP65 compliant
Front hardness glass protect screen(touch option)
3*COM, 1*LPT, 2*PS/2, 1*VGA, 4*USB, 2*Glan, 1*Audio, 1*MIC
1*Mini PCI slot
Wireless LAN with antenna (option)
Panel(Flush)mount with Clips
Standard VESA 75mm support stand, Wall mount and swing arm

Specifications;
Display type: 10.4xGA TFT LCD
Screen resolution(Pixels): 800*600
Brightness: 300CD/m2
Contrast Ratio: 500: 1
Pixel Size: 0.297*0.297
Max Color: 16.2MB
Viewing angle: 150(H), 135(V)
Response time: 8ms
LCD MTBF: 50000hrs
Touchscreen: Resistive
Wireless LAN: Meet IEEE802.11B/G standard

I/O:
1*PS2 for KB/Mouse
2*100/1000LAN port (RJ-45)
1*VGA
4*USB
3*RS-232, COM2 RS232/422/485
1*Lin-IN/Lin-OUT/MIC-IN
1*Powerr switch
1*DC input connector

System:
Processor: Intel Atom D525(Dual-core 1.8GHz processor) CPU with 67 MHz FSB
Chipset: Intel NM10
Memory; 2*SODIMM DDR3 800/1066/1333 SDRAM up to 4GB
Graphic; Intel GMA 3250 chipset
Storage: Space for 1*2.5" SATA HDD
Ethernet" 100/1000 Ethernet
VGA port" 1*VGA connector
KB&Mouse: 1*PS2 port
Audio" Realtek@ALC662, 5.1 Channel surround audio
USB: 4*USB 2.0
Series port; 3*RS232, COM2, RS232/422/485
Expansive slot; 1*Mini PCIe

Environmental;
Construction; Front aluminum bazel and steel enclosure
Operating temperature; 32F~113F (0C ~ 50C)
Storage temperature: -4F~140F (-20C~60C)
Vibration: 17 to 500Hz 1G PTP
Shock: 1G/Peak (11m sec)
Dimension(WHD): 287.4*227.4*68(mm)
Weight: 3.5KG
