Sell 19 Inch Industrial Computer With 4COM, 2 LAN,4USB,1LPT

Sell 19 Inch Industrial Computer With 4COM, 2 LAN,4USB,1LPT thumbnail-1
Sell 19 Inch Industrial Computer With 4COM, 2 LAN,4USB,1LPT thumbnail-2
Sell 19 Inch Industrial Computer With 4COM, 2 LAN,4USB,1LPT thumbnail-3
Sell 19 Inch Industrial Computer With 4COM, 2 LAN,4USB,1LPT photo-1
Sell 19 Inch Industrial Computer With 4COM, 2 LAN,4USB,1LPT photo-2
Sell 19 Inch Industrial Computer With 4COM, 2 LAN,4USB,1LPT photo-3
US$ 1 - 1 MOQ: 1 set
Key Specifications
Get Latest Price
Brand Name:
SunPc
Place of Origin:
China
Model Number:
IPPC-190D-2R
Contact Supplier Request Quote Chat Now
Shenzhen SUNPC Technology Co. Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SunPc
Place of Origin China
Model Number IPPC-190D-2R
Origin China
Model Number IPPC-190D-2R
Brand Name SunPc

SunPc technology Co.LTD provide 8.4", 10.4", 12.1", 15", 17", 19" industiral panel PC and 8.4", 10.4", 12.1", 15", 17" 19" industrial touch LCD monitor

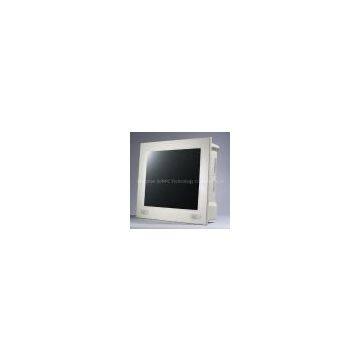

19" Slim Line Panel mount Industrial Panel PC

Feature:
1,Intel Atom D525 Dual-core 1.8GHz Processor
2,Alumiminm magnesium alloy ( better than Alumiminm)
3,IP65 front bazel
4,1* PCI slot, 5 wire touchscreen
5,Wifi optional
6,RS422/485, 2*Wlan port
7,DC12V power adapter ( DC8-28V optional)
8,Support Window CE,Window XPE,Window XP,Window 7,Winows2k,Linux ect

Specification


TFT Characteristics
Display Type

19XGA TFT LCD

 Pixel Number

1280 x 1024
Pixel Pitch(RGB) 0.297*0.297 Contrast Ratio

1300: 1
Light Intensity

350 nits

 Viewable Angles 150°(H) , 135°(V)
Max Colors 16.2MB Response Time 8 ms
MTBF 50,000hrs.
System Characteristics
Processor Intel Atom D525 Dual-core 1.8GHz processor with 667 MHz FSB Chipset Intel NM10
Memory 2 x SODIMM DDR3 800/1066/1333 SDRAM UP to 4GB. Graphic Intel GMA3150
chipset
Storage Space for 1x 2.5" SATA HDD / SSD/ 1 compact flash card slot Audio Realtek ALC662,5.1 Channel surround Audio
USB Port 4 x USB 2.0 Ethernet 100/1000M Ethernet
VGA Port 1 x VGA Connector Expansive Slot

1XPCI, 1 x Mini PCIe
Serial Port

4 x COM( 1X RS422/485+3x RS232)

 Optical device Not build in
VGA port 1 x VGA Connector Watchdog Timer 255 Levels , 1-255 sec.
Available Options
Touch Screen 5 wire Resistive Wireless LAN/Wifi Meet IEEE802.11b/g
standard.
DC Power Input Standard is DC12V input (DC 8 -28V, DC9-36V is optional )
I/O Connector
PS/2 1 x PS2 for KB/ Mouse Lan 2 x 100/1000 Lan port(RJ-45) )
VGA 1 x VGA USB 4x USB 2.0
RS-232

4 x RS-232 (1X RS422/485,3x RS232)

 Power Switch 1 x Power Switch
DC Input 1 x Lockable DC Input connector Audio 1 x Lin-in /Lin-out / Mic-in
Mechanical and Environmental
Construction Aluminum front bazel and silver Color Coating Storage humidity

10% to 90%non-condensing
Operating temperature 32°F~125°F ( 0 °C to 50 °C) Anti-Vibration 17 to 500Hz 1G PTP
Storage temperature -4°F~140°F ( -20 °C to 60 °C) Dimensions (WxHxD

456x 371 x 79 mm
Anti-Shock 1g/ peak(11ms) Weight

Net: 8.5kg , Volume Gross:11 kg

Power Supply
Output DC12V 1A / 120W external AC Power Adapter with Lockable connector Input 100~240VAC,50/60Hz
Certificate & Approvals CE/ RoHS

Ordering Information


IPPC-190D-2R 19" Slim Line Panel Mount Industrial Panel PC with 19”touchscreen, Intel Atom D525 Dual-Core 1.8GHz processor,320G HDD,2G DDR3 RAM, DC12V power supply
Optional:
Storage 16G SSD/32G SSD/8G CF card
Wireless LAN Wifi
Power supply DC8-28V, DC9-36V
CAN 2 X CAN
