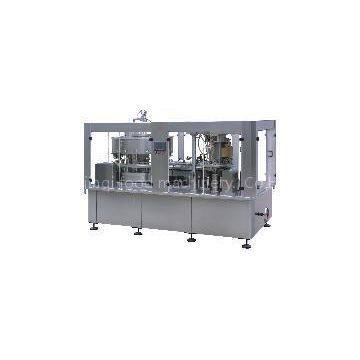

Automatic Filling And Can Sealing Unit JQ4B250

coca-cola filling and sealing production line|

soda filling machine|

pop can filling machine|

canned fruit and vegetable sauce filling machine|

Our company in accordance with domestic large and medium-sized canning factory,beverage factory the actual situation,in the light of Switzerland's most advanced Sealing,filling the design and manufacture of similar products of a new generation of filling,Sealing macheng combinations.Contact-free cans of the pneumatic control automatically covered under the use of lipuid filling,such as technology,production capacity of Frequency Control,95% more than the appearance of stainless steel materials to ensure that the whole appearance and health requirements.To improve the vacuum tank,according to customer configuration steam injection device,in order to ensure maximum technical support to customers can be equipped with remote monitoring system.

Main techniacl parameters:
Seamer heads: 4
Filler heads: 18
Capacity: 80~250 cans/min
Can apply to high: 39~160mm
Applicable of tank diameter: φ52.5~99mm
 Power: 5kw
Machine size: 3080 × 1720 × 2000mm
