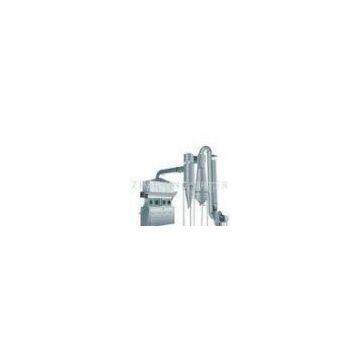

XF0.3-2 electricity / steam high pressure Boiling Dryer for chemical raw material
Description:
■XF Series Boiling Dryer consists of air filter,heater,fluidized-bed main machine,feeder,cyclone separator,
cloth bag duster,high pressure centrifuge fan and console. Because the property of raw materials is difference,
it is necessary toequip dust remover in accordance with practical needs.It can select cyclone separator
and cloth bag duster bothor one of them.In general, it needs to select cyclone separator only for raw material
that is large and cloth bag duster for the material which is powder or small andlight granule,meanwhile
there pneumatic feeding device and belt conveyor for selection.
■ Operation of this machine are continuous and intermitte type.
■ Steam,electricity or hot air furnace can be used (it can be supplied as request).
Application:
Used on medicines, chemical raw material, foodstuff, grain processing, feed and so on. For example,
raw medicine, granular tablet, Chinese tranditional medicine, health foods, drinks,maize embryo, feed,
plastic resin, citric acid and other powders. The suitable diameter of raw material is normally 0.1-0.6mm.
The most applicable diameter of raw material will be 0.5-3mm.
Advantage:
XF Series Boiling Dryer uses clean air after filtrating,through heat exchange, make air temperature rise to
a certain value into main machine, then through distributor of valve plate into fluidization, material from
feeder enter into the drier, because of wind pressure, raw material from boiling state in drier, the wide
contact between hot air and raw material, increasing the process of hot exchang, In short time,
make water vaporizing, raw material is discharged from the outlet. exhaust gas discharged from
the top of the fluidization bed, and discharged from cyclone separator, dust filter with cloth bag
after reclaiming material, The machine is working in negative pressure.
Specification:
TECHNICAL PARAMETERS
|
Model |
XF 0.25-1 |
XF 0.25-2 |
XF 0.25-3 |
XF 0.25-6 |
XF 0.3-2 |
XF 0.3-4 |
XF0.3-6 |
XF0.3-8 |
XF0.3-10 |
XF 0.4-4 |
XF0.4-6 |
|
Technical Parameters |
(XF10) |
(XF20) |
(XF30) |
||||||||
|
Area of bed layer(m2) |
0.25 |
0.5 |
1 |
1.5 |
0.6 |
1.2 |
1.8 |
2.4 |
3 |
1.6 |
2.4 |
|
Drying capacity (kg H2O/h) |
10~15 |
20~25 |
30~45 |
52~75 |
~30 |
42~60 |
63~90 |
84~120 |
105~150 |
56~80 |
84~120 |
|
Power of fan (kw) |
5.5 |
7.5 |
15 |
22 |
7.5 |
18.5 |
