Home > Products > New product > Open Frame Type Diesel Generator

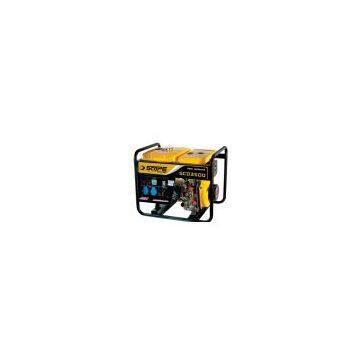

Open Frame Type Diesel Generator
US$ 309 - 309
/ Set
1 Set(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China | |
| Model Number | SCD3500(E) |
Product Description
| Rated frequency(Hz) | 50 /60 |
| Rated output(kVA) | 2.8 /3.0 |
| Max.output(kVA) | 3.2 /3.3 |
| Rated voltage(V) | 115/230 120/240 |
| Rated current(A) | 24.4/12.2 25.0/12.5 |
| Phase No. | Single phase |
| Power factor(cosΦ) | 1 |
| Insulation grade | B |
| Pole number | 2 |
| Excitation mode | Self-Excitation and constant voltage(AVR) |
| Panel type | General Panel |
| Voltage(V) | 115/230 120/240 |
| Receptacle | Two receptacles |
| DC12V output | Connection pole output |
| Engine Model | SCD178F |
| Engine type | single-cylinder,Vertical, four stroke,direct injection |
| Bore×Stroke(mm) | 78x62 |
| Displacement | 296 |
| Rated power(Hp/rpm) | 5.0/3000 5.4/3600 |
| Compression ratio | 20:01 |
| Ignition system | Compression Ignition |
| Cooling system | Air cooled |
| Lubrication system | Pressure splashed |
| Starting system | Recoil /Electric Starter |
| Fuel type | 0#(summer)-10#(winter)-20#(chillness)diesel |
| Lube oil Brand | CDgrade or SAE10W-30,15W-40 |
| Lube capacity(L) | 0.75 |
| Starting motor capacity(V-kW) | 12V / 0.8KW |
| Charging generator capacity(V-A) | 12V / 5A |
| Battery capacity(V-Ah) | 12V / 24-36AH |
| Fuel consumption(g/kW h) | 276.1 / 285.6 |
| Fuel tank capacity(L) | 12 |
| Continuous running time(hr) | 8.5 |
| Noise level db(A) | 77 |
| Structure type | Open frame |
| Dry weight(Kg) | SCD350065kg SCD3500E/70kg |
| Gross weight(Kg) | SCD3500/78kg SCD3500E/83kg |
| Overall dimension:L×W×H(mm) | 685x490x575 |
