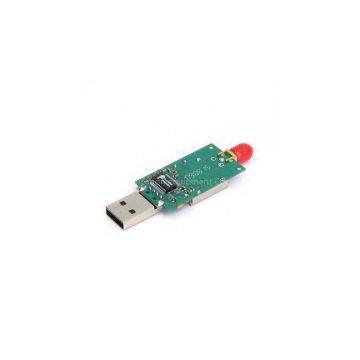

KYL-220 usb 433mhz transceiver 10mW rf data transmitter and receiver 38400bps airspeed rate short range control data systerm

1)Data Sheet:

o RF power: 10mW

o Operating voltage: 5 V

o Receive current: <20mA

o Transmitting current: <25mA

o Sleep current: <20uA

o Carrier frequency: 433MHz /400MHz / 450MHz/470MHz (you need to tell us what frequency you need or we will defulted it to 433)

o Communication connects: USB

o Baud rate: 1,200/2,400/4,800/9,600/1,9200/38,400/100kbps(what baud rate you need)

o RF line-of-sight range: more than 100m

o Size: 40 x 24 x 6mm (without antenna port)

2)How to use the KYL-220

KYL-220 provides USB interface which can be directly connected with PC.

1. Power supply

The factory setting is +5V.

2. You need to install USB driver on your Laptop /PC ,then our module can be recognized .

3.Setting of channel, interface, and data format by our software .

Before using KYL-220, the user needs to make simple configuration to determine the channel,

interface mode and data format based on his own needs. You can view or change the module's interface baud rate, channel and address code,

parameter setting or reading as per the testing software.
