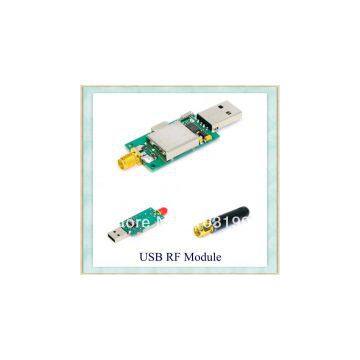

KYL-220 low cost rf transmitter receiver usb 433mhz 400mhz rf usb module using Driver convert USB to UART

FOB Price

USD $16 - $16 / Piece

2 Pieces(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	KYL		Place of Origin	China
Model Number	kyl-220

1)Data Sheet:

o RF power: 10mW

o Operating voltage: 5 V

o Receive current: <20mA

o Transmitting current: <25mA

o Sleep current: <20uA

o Carrier frequency: 433MHz /400MHz / 450MHz/470MHz (you need to tell us what frequency you need or we will defulted it to 433)

o Communication connects: USB

o Baud rate: 1,200/2,400/4,800/9,600/1,9200/38,400/100kbps(what baud rate you need)

o RF line-of-sight range: more than 100m

o Size: 40 x 24 x 6mm (without antenna port)

2)How to use the KYL-220

KYL-220 provides USB interface which can be directly connected with PC.

1. Power supply

The factory setting is +5V.

2. You need to install USB driver on your Laptop /PC ,then our module can be recognized .

3.Setting of channel, interface, and data format by our software .

Before using KYL-220, the user needs to make simple configuration to determine the channel,

interface mode and data format based on his own needs. You can view or change the module's interface baud rate, channel and address code,

parameter setting or reading as per the testing software.

iF you have any questions ,pls contact :
sales01(at)rf-data(dot)com
