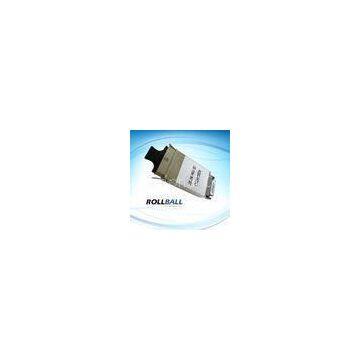

Short Wavelength 850nm1.25Gbps / 1.0625Gbps Multimode 1000BASE-SX GBIC Transceiver Module WS-G5484
Features
l Dual data-rate of 1.25Gbps/1.0625Gbps operation
l 850nm VCSEL laser and PIN photodetector
l Duplex SC optical interface
l Standard serial ID information compatible with SFF-8053
l 550m transmission with 50/125 µm MMF
l 275m transmission with 62.5/125 µm MMF
l +3.3V/5V single power supply
l RoHS Compliant
l Operating case temperature: 0 to +70℃
Applications
l Switch to Switch interface
l Switched backplane applications
l Router/Server interface
l Other optical transmission systems
Description
The GBIC transceiver is high performance, cost effective module supporting dual data-rate of 1.25Gbps/1.0625Gbps 1.25Gbps/1.0625Gbps and from 550m transmission on 50/125 µm MMF.
The transceiver consists of two sections: The transmitter section incorporates a VSCEL laser. And the receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA). All odules satisfy class I laser safety requirements.
The optical output can be disabled by a TTL logic high-level input of Tx Disable. Tx Fault is provided to indicate degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver.
The standard serial ID information Compatible with GBIC MSA describes the transceiver’s capabilities, standard interfaces, manufacturer and other information. The host equipment can access this information via the two-wire serial CMOS EEPROM protocol. For further information, please refer to SFF-8053
Specification:
Optical and Electrical Characteristics (Operating case temperature TC=25℃, VCC=3.3V)
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
|
Transmitter |
||||||
|
Centre Wavelength |
λC |
830 |
850 |
860 |
nm |
|
|
Average Output Power |
P0ut |
-9 |
-3 |
dBm |
1 |
|
|
Spectral Width (RMS) |
σ |
0.85 |
nm |
|||
|
Extinction Ratio |
ER |
9 |
dB |
|||
|
Output Optical Eye |
IEEE 802.3z and ANSI Fibre Channel compatible |
2 |
||||
|
Data Input Swing Differential |
VIN |
300 |
1860 |
mV |
3 |
|
|
Input Differential Impedance |
ZIN |
