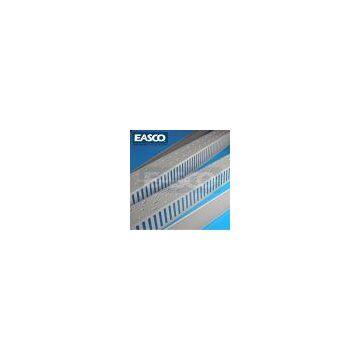

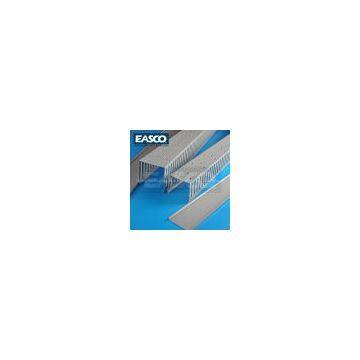

Plastic Slotted Cable Trunk
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | EASCO | Place of Origin | China | |
| Model Number | WDC |
Product Description
2)Close slot wire duct.
3)Wide Square slot varying from 8.5 to 10mm
| CE Cable Duct. Wire Management |
|
Material: Rigid PVC Material. Self-extinguishing.UL94 V-0 |
|
Length: 2 Meter (~78") |
|
Part No.: WDC |
FEATURES:
1)Aesthetics. Close Slot.
2)Easy insertion and removal of cover , wire and cable.
3)Smooth edges can protect your hands and wiring insulation free from burrs
or sharp edges without abrasion.
4)With mounting holes for easy mounting.
5)Non-slip cover prevent slipping of the cover.
6)Flush cover design holds more wires than traditional duct.
SPECIFICATIONS:
| Part No. | WxH | M/PACK | 14AWG/PCS |
| WDC1525 | 15x25 | 300 | 5-12 |
| WDC2025 | 20x25 | 230 | 5-12 |
| WDC2525 | 25x25 | 180 | 10-25 |
| WDC2030 | 20x30 | 192 | 15-25 |
| WDC2530 | 25x30 | 144 | 15-25 |
| WDC3030 | 30x30 | 120 | 15-25 |
| WDC4030 | 40x30 | 100 | 25-35 |
| WDC2540 | 25x40 | 124 | 20-25 |
| WDC4040 | 40x40 | 80 | 60-70 |
| WDC6040 | 60x40 | 80 | 100-115 |
| WDC2550 | 25x50 | 100 | 20-25 |
| WDC3050 | 30x50 | 120 | 30-35 |
| WDC3550 | 35x50 | 120 | 40-45 |
| WDC4050 | 40x50 | 100 | 50-60 |
| WDC4550 | 45x50 | 80 | 60-70 |
| WDC5050 | 50x50 | 80 | 80-90 |
| WDC5550 | 55x50 | 72 | 80-90 |
| WDC6050 | 60x50 | 68 | 85-95 |
| WDC8050 | 80x50 | 52 | 150-170 |
| WDC10050 | 100x50 | 40 | 200-240 |
| WDC2560 | 25x60 | 132 | 40-45 |
| WDC3560 | 35x60 | 108 | 40-55 |
| WDC4060 | 40x60 | 93 | 100-115 |
| WDC4560 | 45x60 | 84 | 113-118 |
| WDC5560 | 55x60 | 72 | 115-130 |
| WDC6060 | 60*60 | 60 | 120-135 |
| WDC8060 | 80x60 | 44 | 180-240 |
| WDC10060 | 100x60 | 32 | 190-250 |
| WDC2580 | 25x80 | 100 | 100-120 |
| WDC3080 | 30x80 | 80 | 110-130 |
| WDC3580 | 35x80 | 72 | 120-140 |
| WDC4080 | 40x80 | 56 | 120-135 |
| WDC4580 | 45x80 | 56 | 130-140 |
| WDC5080 | 50x80 | 48 | 150-190 |
| WDC5580 | 55x80 | 48 | 150-190 |
| WDC6080 | 60x80 | 40 | 180-210 |
| WDC8080 | 80x80 | 32 | 240-290 |
| WDC10080 | 100x80 | 24 | 260-350 |
| WDC12080 | 120x80 | 24 | 260-350 |
| WDC14080 | 140x80 | 16 | 300-400 |
| WDC33100 | 33x100 | 72 | 110-160 |
| WDC40100 | 40x100 | 56 | 130-170 |
| WDC48100 | 48x100 | 48 | 220-250 |
| WDC50100 | 50x100 | 40 | 220-250 |
| WDC60100 | 60x100 | 40 | 240-290 |
| WDC70100 | 70x100 | 32 | 250-350 |
| WDC80100 | 80x100 | 32 | 260-350 |
| WDC100100 | 100x100 | 24 | 300-400 |
| WDC120100 | 120x100 | 16 | 330-430 |
| WDC160100 | 160x100 | 12 | 360-460 |
REMARKS:
*Also supply wire duct manufactured by lead-free material, please refer to model: WDCR.
*Wire duct is supplied in lengths of 2m(~78"),complete with covers, in complete packages only.
*Special color, size, length upon request of reasonable quantity.
CERTIFICATES FOR WIRING DUCT.
UL:E354081 WIRE DUCT. CSA UL:E354081 WIRING TRUNKING. ROHS FOR HALOGEN FREE WIRING CABLE DUCT. ROHS: LEAD-FREE PVC CABLE DUCT. ROHS: FLEXIBLE WIRING DUCT. CE: SLOTTED WIRING CABLE TRAY.UV EXPOSURE TEST REPORT FOR WIRE DUCT. UL94V0:WIRE DUCT. TEMPERATURE TEST REPORT :CABLE TRUNKING SLOTTED. REACH :CABLE TRAY CABLE TRUNKING.REACH :CABLE CHANNEL.
