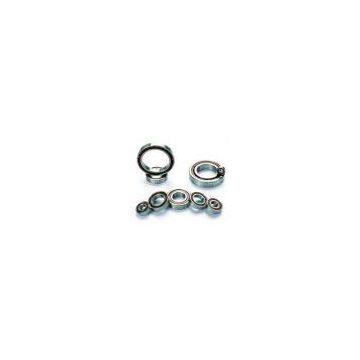

Single Row Angular Contact Ball Bearing 7226, 7230 For Radial Loading, Printing Machines
Feature:
When the single-row angular contact ball bearing is carrying the radial load, they will be a component of force in the axial direction. Therefore it is suggested that two of there bearings be applied in back-to-back or face-to-face arrangements. Single row bearings can carry radial load and axial load in one direction. Double-row angular contact ball bearings have two designs of one outer ring and two inner rings and one outer ring and one inner ring. For the design with one outer ring and two inner rings, the axial clearance is easy to control during machining.
Applications:
These bearings are mainly applied in the machine tool spindles, high-frequency motors, gas turbines, oil pumps, air compressors, printing machines and other installations.
| Model | Size | 〆15º | 〆25º | Cage Material | ||||
| Limit Speed | Limit Speed | |||||||
| ID | OD | H | Rated load amount | Rated load amount | ||||
| Cr Cor | Grease Oil | Cr Cor | Grease Oil | |||||
| 7226 | 130 | 230 | 40 | 200.6 258.3 | 4600 7500 | 190.4 246.2 | 4000 6500 | Bakelite |
| 7228 | 140 | 250 | 42 | 223.6 306.6 | 4000 6500 | 212.3 292.2 | 3500 5700 | Bakelite |
| 7230 | 150 | 270 | 45 | 240.9 341.5 | 3500 5700 | 228.7 325.5 | 3000 5000 | Bakelite |
| 7232 | 160 | 290 | 48 | 248.6 365.8 | 3300 5300 | 236.1 348.6 | 2800 4600 | Bakelite |
