Home > Products > Ball Joint Bearings > 7200, 7201, 7203 Single Row Angular Contact Ball Bearing For Gas Turbines, Installations

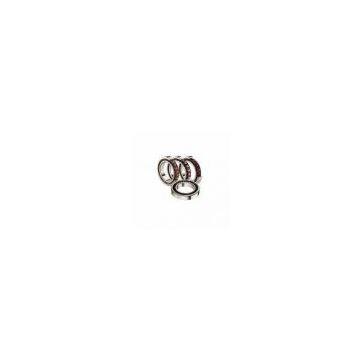

7200, 7201, 7203 Single Row Angular Contact Ball Bearing For Gas Turbines, Installations
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
7204, 7205, 7207 Single Row Angular Contact Ball Bearing For High Frequency Motors
-
Single Row 7208, 7209, 7211 Angular Contact Ball Bearing For Machine Tool Spindles
-
Single Row 7212, 7214 Radial Load Angular Contact Ball Bearin For High Frequency Motors
-
7015, 7018 Radial Load Single Row Angular Contact Ball Bearing For Printing Machines
-
Single Row 7216, 7218, 7219 Angular Contact Ball Bearing For Radial Load, Oil Pumps
-
Radial Load Single Row 7019, 7020 Angular Contact Ball Bearin For Air Compressors
Product Details
| Brand Name | KOYO, LYC, NSK, NTN, SKF, THK, TIMKEN, ZWZ，HRB | Place of Origin | China | |
| Model Number | Various standard are available |
Product Description
Certification:ISO9001, ISO14001
7200, 7201, 7203 Single Row Angular Contact Ball Bearing For Gas Turbines, Installations
Feature:
When the single-row angular contact ball bearing is carrying the radial load, they will be a component of force in the axial direction. Therefore it is suggested that two of there bearings be applied in back-to-back or face-to-face arrangements. Single row bearings can carry radial load and axial load in one direction. Double-row angular contact ball bearings have two designs of one outer ring and two inner rings and one outer ring and one inner ring. For the design with one outer ring and two inner rings, the axial clearance is easy to control during machining.
Applications:
These bearings are mainly applied in the machine tool spindles, high-frequency motors, gas turbines, oil pumps, air compressors, printing machines and other installations.
| Model | Size | 〆15º | 〆25º | Cage Material | ||||
| Limit Speed | Limit Speed | |||||||
| ID | OD | H | Rated load amount | Rated load amount | ||||
| Cr Cor | Grease Oil | Cr Cor | Grease Oil | |||||
| 7200 | 10 | 30 | 9 | 6.4 3.8 | 55000 84000 | 6.3 3.7 | 52000 79000 | Bakelite |
| 7201 | 12 | 32 | 10 | 7.2 4.5 | 52000 79000 | 6.9 4.3 | 47000 69000 | Bakelite |
| 7202 | 15 | 35 | 11 | 9.1 5.8 | 47000 69000 | 8.8 5.6 | 42000 62000 | Bakelite |
| 7203 | 17 | 40 | 12 | 11.3 7.4 | 39000 59000 | 10.9 7.1 | 37000 55000 | Bakelite |
