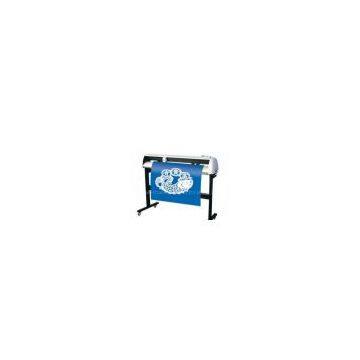

Servo Motor Simple Graph Plotter With 320*240 Blue Background LCD

USB2.0.Serial Port.

320*240 blue background LCD

Multi language supporting

16-bit CPU,  1MB CACHE Memory,  high speed dsp processor, digital control servo motor

Work on xp vista win7 systerm

Use art cut, flexisign, coreldraw software

Type

CT630S

CT1200S

Media Way

M form Bracket or Stand

Floor Stand

Driver

Digital control servo motor

Mainboard

16-bit CPU,  1MB High-speed CACHE Memory

Maximum paper feed width

730mm

1300mm

Maximum Cutting width

635mm

1205mm

Maximum Cutting Speed

1000mm / s

Maximum Cutting length

20000mm <=20

Maximum Cutting thickness

1mm

Cutting force

0-500g(digital adjustment)

Mechanical precision

0. 1mm

Repeatable precision

< _0. 1mm

Type of tool

Carbide blade

Type of Plot pen

All types diameter 11. 4mm plotter pen

Plotter Instruction

 DM-PL HP / GL Automatic identification

Interface

USB1.0 Port & Serial Port

Power Supply

AC220V / 110V,  50Hz

Operating environment:

Temperature: 5_ 35,  Relative Humidity: 30% ~70%
