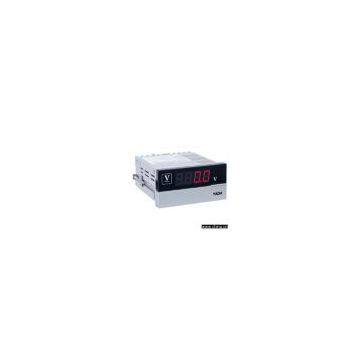

Sell Panel Meter

Model No.:YD8000
Product Origin:China
Brand Name:yadata
Price Terms:CIF, FOB
Payment Terms:L/C
Certification:CE
Description:Product Name: Panel MeterModel Number: YD8000Place of Origin: ChinaFeatures: 1) Specifications: a) Construction: panel mounting, connection backside b) Housing material: flame-resistant resin c) Isolation: between power supply / input / output d) Installation e) Operating temperature: -20 - 55°C f) Operating humidity: 10 - 95% g) Weight: 500g h) Mounting: panel flush mounting, external dimensions and trepanning dimensions: i) External dimensions: 48 x 48mm, 96 x 96mm, 96 x 48mm, 120 x 120mm ii) trepanning dimensions: 45 x 45mm, 92 x 92mm, 91 x 45mm, 111 x 111mm i) Maximum display: 19,999 j) Display definition: voltage 0.1V, current 0.001A k) Maximum input range: U, AC 0 - 600V, I, AC 0 - 6A l) Input mode: single terminal input m) Precision class: 0.5 grades n) Absorbing power: U <1.2VA o) Measuring speed: about 2.5 times/s p) Frequency range: 40 - 200Hz q) Output load capacity: <400Ω r) Power supply: AC220V±20%, 50 / 60Hz s) Working frequency withstand voltage: between power supply / input / output ≥AC2kV/min.1mA t) EFT: 2KV, 5kHz u) Surge impulse voltage: 2KV, 1.2/50s v) Insulation resistance: ≥100MΩ 2) Functions: a) Modularization design, may according to the user's request choose single display, display product which add any other function b) Many structures for users to choose from c) Adopts the newest PIC chip, strong interference killing feature excellent technology, good externality, high cost performance ratio
