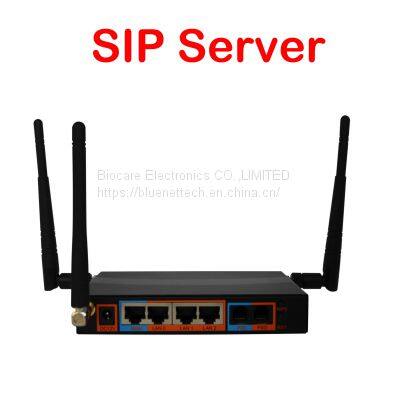

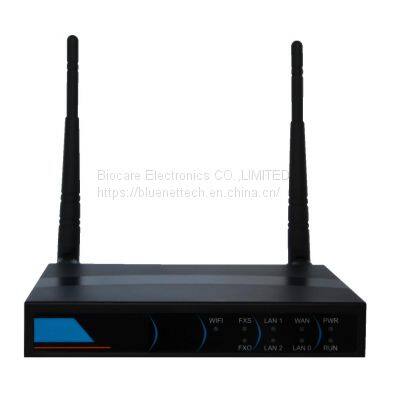

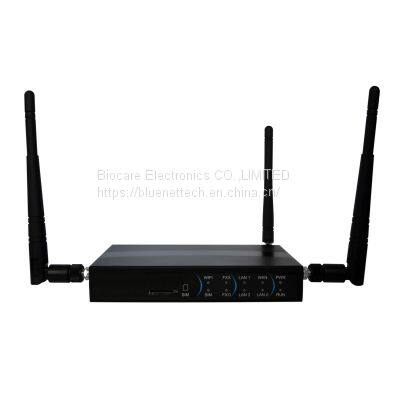

Smart Voip Pbx With FXO FXS GSM Port, Sip Server, Call Terminal, Voip ATA, Intercom, Indoor Calls

  HM100 is a multi-functional device. It integrates voice service and data service.it is perfect for small and micro enterprises, providing high-speed internet access,good voice service and messaging service.

  ***As a hybrid voip ata,it provides three voice interfaces (including GSM, FXS and FXO), offering
 seamless connectivity to VoIP Network, PLMN and PSTN.it also provide SMS sending&receiving.

  ***As a hybrid voip pbx, it provide 8 sip users connection.it provide Auto attendant, IVR, call
 forward/hold/waiting/transter etc pbx function.it also provide failover routing.

 ***As a router, it supports WiFi and has high-speed data-handling capacity, allowing users to enjoy
 high-speed internet surfing through WiFi or the LAN port.

Key Features:
*  FXS/FXO/GSM interface
*  Auto attendat
*  IVR
*  WIFI router & WIFI hotspot
*  Built-in SIP server, support up to 8 SIP Extensions
*  SMS bulk sending&receiving
*  3 way conference

Physical Interfaces:
----FXO port :1
----FXS port :1
----SIM Slot :1
Ethernet Interfaces:
 ----1 LAN 10/100M Base-T RJ45
 -----1 WAN 10/100M
LED Indicators:
----Power, Run, WIFI,Network and Line LEDs
----Wireless: Wifi   2.4Ghz  802.11n
VoIP
----•G.711A/U law, G.723.1, G.729A/B,G.726
----•AMR/GSM FR/HR/EFR/CDMA EVRC
----•QCELP
----•Silence Suppression & Detection
----•Comfort Noise Generation(CNG)
----•Voice Activity Detection(VAD)
----•Echo Cancellation(G.168)
----•Adaptive (Dynamic) Jitter Buffer
----•Call Progress Tone Generation
----•Programmable Gain Control
----•Hook Flash
----•  DTMF mode: Signal/RFC2833
----•   FXO Gain Auto Detect
----•   T.38/Pass-Through FAX

Call & Routing
---- Ring Groups
----Call Routing Group
----Caller/Called Number Manipulation
----Time based Call Routing
----Number based Call Routing
----Service provider based Call Routing
----Dial Plan
----Failover Call Routing
----Custom IVR
----Automated attendant

SIP Protocol
 ----SIP V2.0 RFC3261
----SDP RFC2327
----Session Timer RFC4028
----RTP/RTCP RFC3551
----SIP Extensions
----SIP Registration
----SIP Trunk
----SIP Master/Slave Server
----Configurable SIP Release Code
----DNS SRV/A Query
----Outbound Proxy
----NAT Traversal
          Dynamic NAT, Static NAT, STUN

Protocol
---- IP v4/v6, UDP/TCP
----Static IP/PPPoE/DHCP
----FTP/TFTP/ARP/RARP
----HTTPS/SSH/Telnet/STUN
----PRI/BRI/R2
----SIP/IMS/H323
----NTP
----VPN(Pass-through)

IPPBX Function List
----Call Forward on Busy
----Call Forward on No Answer
----Call Forward Unconditional
----Call Waiting
----Call Hold
----Call Transfer
----Do Not Disturb
----Hotline
----Ring Groups
----Call Groups
----3-way Conference
----Automated Attendant
----Call Detail Records(CDR)
----Interactive Voice Response(IVR)
----Direct inward dial(DID)

Mobile Features
----•Frequency Range:
        GSM: 850/900/1800/1900MHz
----•SMS/SMSC/USSD
----•SMS Coding/Decoding: ASCII/UCS2
----•Open API Protocol
----•PIN Code Management
----•Call Duration Limitation for SIM Card/Single Call
----•Polarity Reversal
----•Carrier Selection
----•Caller ID Restriction for Outgoing Call
----•BCCH Management

Power Supply
----Input: DC 12V/1A
----Power Consumption: 10W (Typical)

Environmental:
----Operating Temperature   0°C to +40°C
----Storage Temperature -10°C to +80°C

Dimensions
---- (WxDxH)125mm*76mm*25mm
