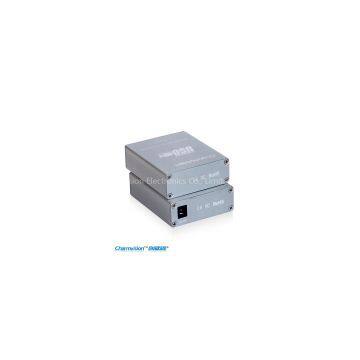

Charmvision EU151P, Full Speed USB1.1/USB2.0 Extender With Power Adapter, Max up to 200m for K&M

NAME:Full Speed USB1.1/USB2.0 Extender with Power adapter,  max up to 200m for Keyboard & Mouse

MODEL:EU151P

I. Product Introduction.

       This product includes a Sender (USB extender sender) and a Receiver (USB extender receiver). It can extend USB port max 150 meters from computer through a single CAT5E cable.

       This product can be widely used in computer, education, bank, and industry.

       USB Extender is with DC5V 3A external power adaptor for receiver part in the package.

II. Installation step:

       1, Make CAT5E cable, the CAT5E cable sequence must be: Orange-white(1),Orange(2),green-white(3),blue(4),blue-white(5)green(6),brown-white(7),brown(8).

       2, Connect one head of CAT5E cable to RJ45 port of Sender, and the other to RJ45 port of Receiver.

       3, Connect the USB devices to USB port of receiver, Power on the USB devices if need.

       4, Connect the USB port of Sender to the USB port of computer with the USB cable provided in the package.

III. Technical Specification

       Size:  75mm X 60mm X 25mm

       Weight:  0.2kg

       Extend distance: 70m/150 m

       Cable Type: UTP CAT5, CAT5E, CAT6, UTP CAT5E is recommended.

       USB Standard: USB1.1 and compatible

       Connector: USB A type, USB B type, RJ45

       System: windows98 SE/ME/200/XP/LINUX

       External power: DC5V/3A

       Drivers: NO

       Receiver Current Drawn: 5V 10mA

       Working temperature: -25~75℃

       Relative humidity:0~95%(non-condensing)

IV. Packing Instruction

       When you open the packing, you will find:

       1, Sender:  1pc

       2, Receiver:  1pc

       3. DC 5V 3A power adaptor: 1pc

       4, USB Link cable (male to male) 1 meter

       5, User guide: 1pc

       6, Guarantee card: 1pc
