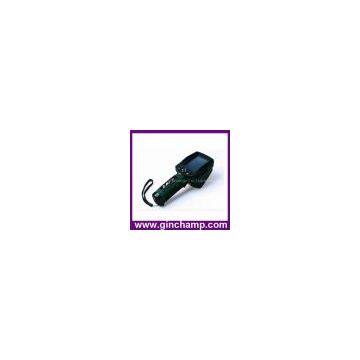

Help CenterHand-held RFID Reader
Related Products
2.hand-held
3.take photo
4.touchable TFT screen
It accords to the electric label that supports UHF EPC Gen2(ISO1800-6C), ISO18000-6B standard agreement, as per users' requirement, we have designed humanistic appearance,can apply to
garment industry administration ,jewelry trade administration,warehouse logistic administration
1.Marvell XSCALE 270-520MHz high-speed CPU ;WinCE 5.0 image operate system
2.standard equipped FRID readers support 18000-6 /GEN-2,TI-Tagit,ISO15693 ISO14443A/B standard
3.extended interface:Micro SD card/USB
4.interior can be added GPRS/GPS/WIFI/2.4G wireless module
5.2.0mega pixels low illumination lens, apply for scene photo taking(optional)
6.IP54 dust-proof&waterproof design, technical grad, anti-falling broken rang is 1.2meters
7.particular ergonomic design,single hand operation
8.applied for logistics, retail checking, manufacturing,rag trade, medical treatment,identity resolution,anti-fake, Asset Management,traffic foodstuff,animal identification, ibrary ,automobile,avigation ,military affairs,etc.
technical grade data trap (functions and parameter)
cessor:Marvell XSCALE PXA270 520MHz high-speed CPU
2.Operation system:micro-soft Win CE 5.0 image operation system
3. Internal memory: 1GB Flash,128M SD RAM
4.Screen: high light real colorful 320*240 TFT touchable screen,supports hand-written function
5.Laser scanning engine(optional): one-dimensional bar code /double-dimensional car code: Symbol SE955/Symbol SE4400
6.RFID reader: supports 18000-6/GEN-2/TI-Tagit,ISO15693,ISO14443A/B standard
7. Outer surface: one Micro SD card slot
8.Wireless communication(optional):built-in GPRS/GPS/WIFI/2.4 wireless module
9.Taking photo(optional):2.0mega pixels low illumination lens,apply for scene photo taking
10. Keyboard /key: big key design,when wearing gloves,also can operate keyboards smoothly, four function keys,
one reset key, one touch off key.
11.Battery : 3.6V 5000mAH large capability chargeable Li-ion battery,can be charged fast outside, adapt to use outdoor.
12. Blue tooth wireless(optional): built-in wireless blue tooth, blue-tooth 1.2 compatible version
13.Communication: USB/RS232 multi-kinds cable transfer interfaces
14.Wireless network (optional):IEEE802.11b/IEEE802.11g Wireless LAN
15. LED indication light: one double colors indicator light,that indicate working and charging states;
four double colors indicator lights,that are used for users' programming
16.Dimension & weight:193mm(L)×87mm(W)×33mm(H),300g
17.Operating temperature: -20°C-+50°C
18.Storage temperature:20°C-+70°C
19.Operating humidity :10%-80%RH(without condensation)
20.Storage humidity:5%-90%RH(without condensation)
21.Dust-proof&waterproof:IP54
22.Anti-falling broken: technical grade 1.2meters
23.Certification: safety EN60950(UL60950 compatible)
EMC,EMI:EN55022/EN55024(FCC section 15B compatible)
Blue-tooth certification: EN300328/EN301489(FCC section 15C,RSS-210compatiable)
Laser :EN60825(FDA compatible )
skype:ginchamp012
msn:ginchamp012@hotmail.com
