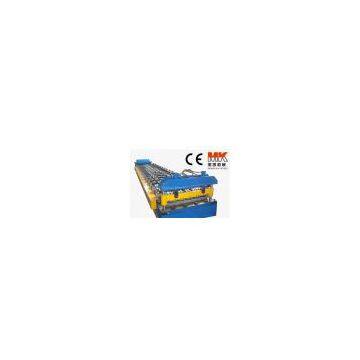

Help CenterColored Roof Panel Roll Forming Machine
Related Products
-
Colored Roof Panel Roll Forming MachineUS$ 10000 - 70000MOQ: 1 Set -
Colored Roof Panel Rolling Machine DesignUS$ 10000 - 70000MOQ: 1 Set
-
Colored Panel Roll Forming Machine For SteelUS$ 10000 - 70000MOQ: 1 Set
-
Colored Roof Roll Forming MachineUS$ 10000 - 70000MOQ: 1 Set
-
Glazed Tile Roll Forming MachineUS$ 10000 - 70000MOQ: 1 Set
A, main technical parameters
1. Decoiler, passive feeding, manually tense
2. Decoiler bearing, 5T
3. Main motor power,4KW(with gear reducer)
4. Forming stations, 16 stands
5. Main shaft diameter, 65mm
6. Hydraulic station motor power, 3KW
7. Shear material, Cr12with quenching
8. Material thickness, 0.3-0.8mm
9. Coil width, 1000mm
10. Cut to length, 10m±2mm
11. Roller material, NO.45 steel with hard chrome plating
12. Hydraulic station oil pump, gear pump CB-E314
13. Shear material, Cr12with quenching
14. Forming speed, 10m/min
15. Profile measure up to Chinese GBT/12755-91 standard
16. VFD, DANFUSS
17. PLC, Mitsubishi FX-IS series
18. Computer control cabinet, XINJIE OP320A
B, Components
manual uncoiler, main roll forming machine, forming shear, Computer control cabinet, hydraulic station, stacker.
C, Flow chart
Decoil----guide feeding ---roll forming ---cut to length---out-put
D , Warranty, year warranty
During the warranty period, maintain and change the spare parts for the customers for free (except for the instrument damage caused by human factors or natural disasters.) And provide technical support for life-long.
Passing CE, Guaranteed quality,
PLC control system, Easy to handle
Whole-process technical trace service
Direction to production line operation
Design according to your requirements.
