Home > Products > High Frequency Online UPS > High-performance integrated outdoor online UPS

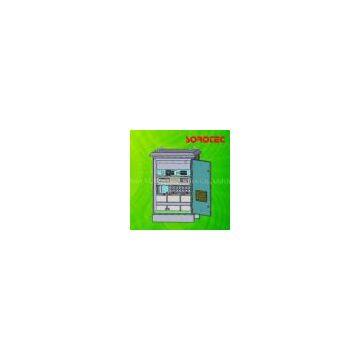

High-performance integrated outdoor online UPS
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | SOROTEC | Place of Origin | China | |
Product Description
Certification:CE,ROHS,ISO9000
Key Features
SORO Outdoor Intelligent High Frequency Online UPS provide continuous pure sine wave AC power supply for outside communications / network equipment.
Double-conversion online design, high temperature resistant, anti-cold, sealing level for IP55; With the wide range of input voltage and frequency of input window (-45% +35% rated voltage and ± 10% rated frequency), in many remote areas of China after a severe test of the grid.
Inner Structure of outdoor UPS HW9110E 1-10KVA:
Applications
This UPS is commonly used in the corner of the city, remote roads, mountains, bad environment, such as high temperature (+50 ° C) / low temperature (-40 ° C), severe dust, moisture, rain, mist erosion, very poor power quality (voltage long-term higher than 260V or less than 160V, frequency abnormal change) in the area.
Technical Specifications of Outdoor UPS HW9110E Series
|
Model |
HW9110E 1-10KVA |
|||||||||||
|
1KVA |
2KVA |
3KVA |
6KVA |
10KVA |
||||||||
|
Capacity |
1KVA/800W |
2KVA/1600W |
3KVA/2400W |
6KVA/4800W |
1000KVA/8000W |
|||||||
|
Nominal voltage |
220/230/240VAC |
|||||||||||
|
Nominal frequency |
50/60HZ |
|||||||||||
|
Input |
||||||||||||
|
Voltage Range |
115～295VAC（±3VAC） |
176～297VAC（±3VAC） |
||||||||||
|
Frequency Range |
50HZ：（46～54HZ）；60HZ：（56HZ～64HZ） |
|||||||||||
|
Power Factor |
0.98 |
|||||||||||
|
Output |
||||||||||||
|
Voltage Precision |
220/230/240X (1±2%)VAC |
|||||||||||
|
Frequency Precision |
50/60HZ±0.05Hz |
|||||||||||
|
Power Factor |
0.7/0.8（optional） |
|||||||||||
|
Wave Distortion |
Linear load ＜3% Non-linear load ＜6% |
|||||||||||
|
Overload capability |
Overload (110% ~ 150%) for 30 seconds, then automatically transfer to bypass. When load is normal, it can automatically transfer to normal mode. |
|||||||||||
|
Crest factor |
3:1 |
|||||||||||
|
Transfer Time |
0ms（AC to DC ） |
|||||||||||
|
Battery |
||||||||||||
|
DC supply voltage |
36VDC |
96VDC |
96VDC |
240VDC |
240VDC |
|||||||
|
Charge current |
4A/8A（optional） |
4A/8A（optional） |
4A/8A（optional） |
4.2A |
4.2A |
|||||||
|
Internal battery capacity |
（38/65/80/100AH）optional |
|||||||||||
|
Panel display |
||||||||||||
|
LCD |
Display | |||||||||||
