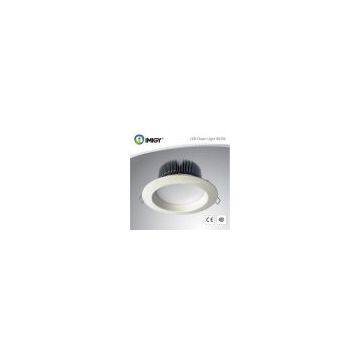

Product Name: LED Down Light 9*2W
Model: D9002
LED Brand: Nichia
Input Voltage: 110-220VAC
Working Temp.: -10°c~40°c
LED Lights Features
1.Housing: Aluminium material good heat conduction.
2.Cover for option:white color, silver color.
3.Working temperature: -10 degree C~40 degree C
4.No glaring.
5.This product works as an replacement of traditional down Light. It can be widely used for office, shop center, restaurant, school, hospital, airport, commercial & home lighting etc.
6.Package Info: Ctn size: 59.5*31*24, 16pcs/ctn, Gross Weight: 10KG/ctn.
7.Notes:
1) The thickness of ceiling material should be 5-25mm.
2) No sundries around, no cover on the Down Light due to heat sinking concern.
8. Warranty: 36 months for Nichia LED, 24months for Taiwan LED.
LED Lights Instruction
Description
It adopts high brightness Nichia LED as luminous body with low-voltage constant current driver, low power consumption, long lifespan, reliability and safety.
Housing is made of high-purity aluminum anodizing after processing which is elegant and stylish. Good thermal management controls light attenuation effectively.
Perfect optical design ensures soft and even light. Instant lighting, no flickering,no glaring. Free of lead, mercury and other harmful substances. This product is widely used in shopping mall, hotel, restaurant and etc.
Notes
Only qualified electrician is allowed to do the installation, maintenance and inspection for safety concern. It is dangerous for non-professional operator.
Ceiling-installation only.
Do not install the product in high temperature or humid place.
75mm space should be left around the product for ventilation, no cover on the light at any time.
Installation
1. Turn off the power.
2. Drill a suitable mounting hole on ceiling according to size requirement of different item.
3. Connect input end of LED converter to power (110V-220V), and make sure connecting way is right.
4. Put LED driver at suitable place on ceiling.
5. Pinch both springs, then push light into installation hole. Make sure the light fixed well.
6. Re-check everything was connected well, then turn on the power.
