LED SpotLight Details

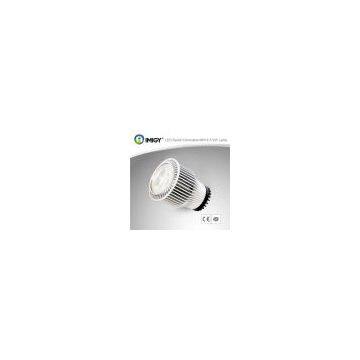

Product Name: LED Switch Dimmable MR16 3*2W Lamp
Model: MR1607-B2S
LED Brand: Nichia
Input Voltage: 12VAC/DC
Working Temp.: -10°c~40°c
LED SpotLight Features
1. Unique design of heat dissipation to improve lifespan.
2. Any number of switch dimmable spot light is allowed to be connected under one rotate panel.
3. All main brand electronic transformers in the current market are compatible.
4. Working temperature: -10 degree C~40 degree C.
5. Replacement of 35W Halogen lamp. Save more than 90% energy.
6. Package Info: Ctn size: 29*29*34.5cm, 100pcs/ctn, Gross Weight: 12KG/ctn.
7. Application: Hotel, shopping mall, counter, commercial & home lighting.
8. Warranty: 36 months.
9. Note:
Dimmable driver or dimmable light fixture is forbidden.
Ensure the power is off before replacing lamp.
LED SpotLight Instruction
Description
It adopts high brightness LED as luminous body with low -voltage constant current driver inside, low power consumption. 3-step dimmable function available.
High-purity aluminum with anodic oxidation treatment is elegant in style. Good thermal management leads to long life-span and control light attenuation effectively.
Perfect optical design ensures even light and high light efficiency. Instant lighting, no flickering, be free of lead, mercury or other harmful substances. This product is widely used in the residential, shopping mall, and hotel, which is an ideal replacement of traditional halogen light.
Notes
Only qualified electrician is allowed to do the installation, maintenance and inspection work for safety purpose. It is dangerous for non-professional operator.
This Lamp Light should be matched with related fixture.
Please do not install the light in high temperature or humid place.
75mm space should be left around the light for ventilation, no cover on the light at any time.
3-step dimmable function with brightness: 100%, 60%, and 30%.
The interval between on & off must <= 3 seconds, in order to realize the 3-step dimmable, otherwise it will be 100% brightness when turn on.
Any number of switch dimmable spot light is allowed to be connected under one rotate panel.
All main brand electronic transformers in the current market are compatible.
Technical Parameters
1. Lamp Holder: G5.3
2. Input Voltage: 12VAC/DC
3. LED Working Current: 530mA (100%), 320 mA (60%), 160mA (30%)
4. Power Consumption: 7W (100%), 4W (60%), 2.2W (30%)
5. Lumen:
Warm white: 330lm (3000K/100%), 220lm (3000K/60%), 110lm (3000K/30%)
White: 360lm (5000K/100%), 240lm (5000K/60%), 120lm (5000K/30%)
6. Color rending: Ra80
7. Beam Angle: 40°
8. Size: φ50*70 mm
9. Working Temperature: -10°c~40°c
For more LED SpotLight information, welcome to visit /product/she.
Product Name: LED Switch Dimmable MR16 3*2W Lamp
Model: MR1607-B2S
LED Brand: Nichia
Input Voltage: 12VAC/DC
Working Temp.: -10°c~40°c
LED SpotLight Features
1. Unique design of heat dissipation to improve lifespan.
2. Any number of switch dimmable spot light is allowed to be connected under one rotate panel.
3. All main brand electronic transformers in the current market are compatible.
4. Working temperature: -10 degree C~40 degree C.
5. Replacement of 35W Halogen lamp. Save more than 90% energy.
6. Package Info: Ctn size: 29*29*34.5cm, 100pcs/ctn, Gross Weight: 12KG/ctn.
7. Application: Hotel, shopping mall, counter, commercial & home lighting.
8. Warranty: 36 months.
9. Note:
Dimmable driver or dimmable light fixture is forbidden.
Ensure the power is off before replacing lamp.
LED SpotLight Instruction
Description
It adopts high brightness LED as luminous body with low -voltage constant current driver inside, low power consumption. 3-step dimmable function available.
High-purity aluminum with anodic oxidation treatment is elegant in style. Good thermal management leads to long life-span and control light attenuation effectively.
Perfect optical design ensures even light and high light efficiency. Instant lighting, no flickering, be free of lead, mercury or other harmful substances. This product is widely used in the residential, shopping mall, and hotel, which is an ideal replacement of traditional halogen light.
Notes
Only qualified electrician is allowed to do the installation, maintenance and inspection work for safety purpose. It is dangerous for non-professional operator.
This Lamp Light should be matched with related fixture.
Please do not install the light in high temperature or humid place.
75mm space should be left around the light for ventilation, no cover on the light at any time.
3-step dimmable function with brightness: 100%, 60%, and 30%.
The interval between on & off must <= 3 seconds, in order to realize the 3-step dimmable, otherwise it will be 100% brightness when turn on.
Any number of switch dimmable spot light is allowed to be connected under one rotate panel.
All main brand electronic transformers in the current market are compatible.
Technical Parameters
1. Lamp Holder: G5.3
2. Input Voltage: 12VAC/DC
3. LED Working Current: 530mA (100%), 320 mA (60%), 160mA (30%)
4. Power Consumption: 7W (100%), 4W (60%), 2.2W (30%)
5. Lumen:
Warm white: 330lm (3000K/100%), 220lm (3000K/60%), 110lm (3000K/30%)
White: 360lm (5000K/100%), 240lm (5000K/60%), 120lm (5000K/30%)
6. Color rending: Ra80
7. Beam Angle: 40°
8. Size: φ50*70 mm
9. Working Temperature: -10°c~40°c
For more LED SpotLight information, welcome to visit /product/she.
