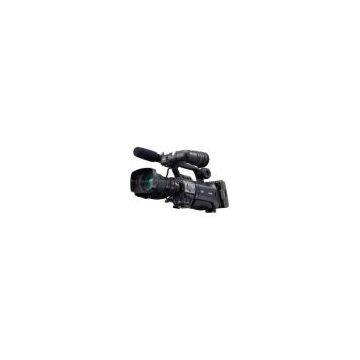

JVC GY-HM710U ProHD Compact Shoulder Camcorder With Canon 14x Lens

Xing Guang Photographic Equipment City
JVC GY-HM710U ProHD Compact Shoulder Camcorder With Canon 14x Lens thumbnail-1
JVC GY-HM710U ProHD Compact Shoulder Camcorder With Canon 14x Lens photo-1
US$ 2390 - 2390 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
JVC
Place of Origin:
China
Model Number:
JVC GY-HM710U ProHD
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name JVC
Place of Origin China
Model Number JVC GY-HM710U ProHD

Image Device 1/3" progressive 3-CCD
Recording Media SDHC memory card (Class 6 or Class 10), 2 slots
Codec MPEG-2 Long GOP (HD), DV (SD)
File Format QuickTime for Final Cut Pro (HD/SD) / MP4 (HD) / AVI (SD)
Recording Modes HD HQ mode: VBR, 35 Mb/s (1920 x 1080 i60, p24/30) MPEG-2 MP@HL
HD SP mode: CBR, 25 Mb/s (1440 x 1080 i60) MPEG-2 MP@H-14
SD mode: DV Compression 4:1:1, 8-bit, 25 Mb/s
Signal System NTSC

HD HQ mode: 1920 x 1080/59.94i, 29.97p, 23.98p, 1440 x 1080/59.94i (MOV only)
HD SP mode: 1440 x 1080/59.94i
NTSC SD mode: 480/59.94i
Audio Recording HD: Linear PCM 2ch, 48 kHz / 16-bit
SD: Linear PCM 2ch, 48 kHz / 16-bit
Lens Canon f/1.6, 14x, f=4.4-61.6mm (35mm equivalent: 32-448mm)
Lens Mount 1/3" bayonet
Filter Diameter 82mm hood unit / 72mm lens barrel
Shutter Speed 1/6 to 1/10000, EEI
Gain Selection 0 dB, 3 dB, 6 dB, 9 dB, 12 dB, 15 dB, 18 dB, ALC
Built-in Filters OFF, +1/4 ND, +1/16 ND
Minimum Illumination 1.25 lux (typical) (1920 x 1080 mode, f/1.4, +18 dB, with 8-frame accumulation)
Synchronizing System Internal sync: buit-in SSG
LCD Monitor 4.3" LCD, 800 x 480 (WVGA, 410,000 pixels)
Viewfinder 0.45" LCOS, 1,226,000 pixels (852 x 480 x 3)
Signal-to-Noise Ratio Not specified by manufacturer
Maximum Recording Time 4 hr 40 min in HD SP mode (with 2x 32 GB SDHC cards)
3 hr 20 min in HD HQ mode (with 2x 32 GB SDHC cards)
4 hr in SD mode (with 2x 32 GB SDHC cards)
Video Outputs Analog Composite output (downconverted 480i, 4:3/16:9): 1.0V (p-p), 75 ohms, BNC (unbalanced; switchable from analog component Y output)

Analog Component output (downconverted 480i; 1080i): BNC x3 (unbalanced)

Y: 1.0V (p-p), 75 ohms Pb, & Pr: 0.7V (p-p) 75 ohms

SDI output (downconverted 480i/1080i: embedded audio) BNC (unbalanced)

HD-SDI: Compliant with SMPTE 292M / SD-SDI: Compliant with SMPTE 259M
Audio Inputs [MIC] -60 dBu, 3k ohms, XLR (balanced), +48V output (phantom power supply)
[LINE] +4 dBu, 10k ohms, XLR (balanced)
Audio Outputs -8±1 dBu (audio signal process output at +20 dB), 1k ohms, RCA x2 (unbalanced)
Headphone Outputs 3.5mm mini jack (stereo) x2
Remote Control Connector DIN 6-pin
FireWire 4-pin IEEE 1394 port
USB Connector Mini USB-B type, USB2.0, mini B, slave function (mass storage class) only
Power Requirements DC 12V (11-17V)
Power Consumption Approx. 24W (recording mode with standard lens and LCD monitor in use)
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Operating Humidity 30 to 80% RH
Storage Humidity Under 85%
Dimensions (WxHxD) Not specified by manufacturer
Weight Approx. 7.5 lb (3.4 kg) including KT14x4.4 lens, viewfinder, microphone
