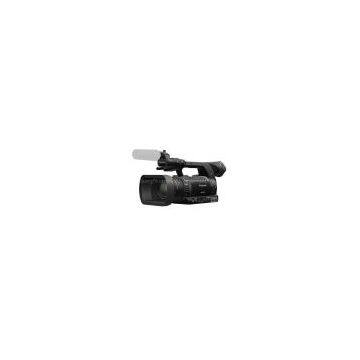

Panasonic AG-AC160 AVCCAM HD Handheld Camcorder

Xing Guang Photographic Equipment City
Panasonic AG-AC160 AVCCAM HD Handheld Camcorder thumbnail-1
Panasonic AG-AC160 AVCCAM HD Handheld Camcorder photo-1
US$ 1950 - 1950 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Panasonic
Place of Origin:
China
Model Number:
Panasonic AG-AC160 AVCCAM HD
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Panasonic
Place of Origin China
Model Number Panasonic AG-AC160 AVCCAM HD

Image Device 3x 1/3-type progressive 2.2 Mp CMOS
Prism color separation
Lens 22x optical zoom
2x, 5x, 10x digital zoom
3.9-86mm (28-616mm 35mm equivalent)
f/1.6-3.2
18 elements in 12 groups
Minimum Object Distance (M.O.D.) Approx. 3.3' (1 m)
Filter Diameter 72mm
Horizontal Resolution Not specified by manufacturer
Sensitivity Not specified by manufacturer
Minimum Illumination 0.4 lux (f/1.6, gain +30 dB, shutter speed 1/30 second)
Vertical Smear Not specified by manufacturer
Signal System NTSC, PAL
Built-in Filters ND filter: OFF, 1/4, 1/16, 1/64
LCD Monitor 3.45" (87.63mm) color LCD monitor with approx. 921K dots (16:9)
Viewfinder 0.45" (11.43mm) color LCoS monitor with approx. 1226K dots (16:9)
Scan Matching Not specified by manufacturer
Memory Card Slot 2x SD/SDHC/SDXC slots
Shutter Speed 60i mode: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000 second
30p mode: 1/30, 1/50, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000 second
24p mode: 1/24, 1/50, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000 second
50i/50p modes: 50i/50p: 1/50, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000 second
25p: 1/25, 1/50, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000 second
Slow Shutter 60i mode: 1/8, 1/15, 1/30 second
30p mode: 1/8, 1/15 second
24p mode: 1/6, 1/12 second
50i/50p mode: 1/6, 1/12, 1/25 second
25p mode: 1/6, 1/12 second
Synchro Scan Shutter 60i mode: 1/60.0 to 1/249.8 second
30p mode: 1/30.0 to 1/249.8 second
24p mode: 1/24.0 to 1/249.8 second
50i/50p mode: 1/50.0 to 1/250.0 second
25p mode: 1/25.0 to 1/250.0 second
Shutter Opening Angle 3-359.5° in 0.5° increments
Frame Rates 24, 30, 60 fps

Variable Frame Rates:
1080/24p, 1080/30p: 2, 6, 9, 12, 15, 18, 20, 21, 22, 24, 25, 26, 27, 28, 30, 32, 34, 36, 40, 44, 48, 54, 60 fps
1080/25p: 2, 6, 9, 12, 15, 18, 20, 21, 22, 24, 25, 26, 27, 28, 30, 32, 34, 37, 42, 45, 48, 50 fps
Gain Selection 0/+3/+6/+9/+12/+15/+18/+24/+30 dB (+24 dB, +30 dB: USER button S.GAIN only)
Recording Media SD memory card (FAT12, FAT16 formats supported): 512 MB, 1 GB, up to 2 GB
SDHC memory card (FAT32 format supported): 4 GB, 6 GB, 8 GB, 12 GB, 16 GB, 32 GB
SDXC memory card (exFAT format supported): 48 GB, 64 GB (up to 2 TB)
Recording Formats AVCHD standard (MPEG-4 AVC/H.264), DV standard (AVI Type2)
Maximum Recording Time With 2x 64 GB SDXC cards: Approx. 12 hours in PH (highest-quality AVCHD); 48 hours in HE mode (lowest-quality AVCHD); 8.5 hours in DV mode
Signal-to-Noise Ratio Not specified by manufacturer
Video Signals PH mode: 1080/59.94i, 1080/50i, 1080/29.97p, 1080/25p, 1080/23.98pN, 720/59.94p, 720/50p, 720/29.97p, 720/25p, 720/23.98pN
PM mode: 720/59.94p, 720/50p
HA/HE mode: 1080/59.94i, 1080/50i
DV mode: 576/50i, 576/25p, 480/59.94i, 480/29.97p, 480/23.98p
Sampling Frequency 4:2:0 (AVCHD)
4:1:1 (DV)
Quantization Not specified by manufacturer
Video Compression MPEG-4 AVC/H.264 (AVCHD)
DV (DV)
Video Bitrates PH mode: Approx. 21 Mb/s (VBR)
PM mode: Approx. 8 Mb/s (VBR)
HA mode: Approx. 17 Mb/s (VBR)
HE mode: Approx. 6 Mb/s (VBR)
Interval Recording 1 sec / 10 sec / 30 sec / 1 min / 2 min interval, maximum 168 hours (1 week) recording (PH 1080/24p mode is fixed)
Audio Signal Dolby Digital 2-channel and 48 kHz/16-bit, Linear PCM 2-channel (switchable in PH mode of AVCHD)
Dolby Digital 2-channel (PM/HA/HE modes of AVCHD)
48 kHz/16-bit, Linear PCM 2-channel (DV)
Audio Bitrates PH mode: 384 kb/s
PM/HA/HE mode: 256 kb/s
Speaker 1x 20mm diameter
Video Outputs SDI: 1x BNC, 0.8 V [p-p], 75 Ω, HD/SD switchable
HDMI: 1x HDMI Type A, VIERA Link not supported
Composite Video: 1x Pin jack, 1.0 V [p-p], 75 Ω
Audio I/O Input:
2x XLR 3-pin (input 1, input 2)
Line/Mic/+48V switchable
Line: 0 dBu
Mic: -40 dBu / -50 dBu / -60 dBu switching via menu
Built-in Mic In supports stereo microphones

Output:
2x pin jack (channel 1 / channel 2), 316mV, 600 ohm output
1x 3.5mm diameter stereo mini jack for headphones
Via HDMI: 2-channel (linear PCM) & 5.1-channel (Dolby Digital)
Other I/O Connections Time Code Preset In/Out: Via Composite Video Out dual-purpose (In: 1V [p-p] to 4V [p-p], 10 k-ohm; Out: Low-impedance, 2.0±0.5V [p-p])
Camera Remote: 1x 2.5mm diameter super mini jack (zoom, shutter speed); 1x 3.5mm diameter mini jack (focus, iris)
Index Remote: 1x 2.5mm diameter super mini jack
IEEE 1394: 1x 6-pin, digital output only
USB 2.0 (Device): 1x Type Mini B, 4-pin USB 2.0
Power Requirements 7.2V DC via battery
7.3V DC via AC adapter
Power Consumption 11.8W when recording
Operating Temperature 0 to 40 °C (32 to 104 °F)
Operating Humidity 10-80% (no condensation)
Dimensions (WxHxD) 7 x 7.69 x 17.25" (180 x 195 x 438mm) excluding protrusions
Weight Approx. 5.3 lb (2.4 kg) excluding battery and accessories
