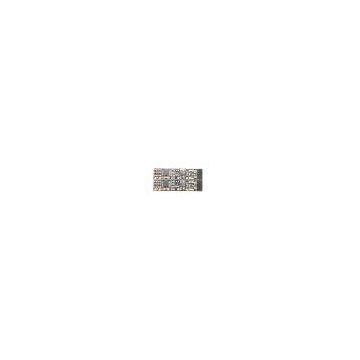

Battery Protection Board for 11.1V Lithium Ion Battery (4A Limit)

Zhengzhou R-Founder Technology Co., Ltd.
Battery Protection Board for 11.1V Lithium Ion Battery (4A Limit) thumbnail-1
Battery Protection Board for 11.1V Lithium Ion Battery (4A Limit) thumbnail-2
Battery Protection Board for 11.1V Lithium Ion Battery (4A Limit) thumbnail-3
Battery Protection Board for 11.1V Lithium Ion Battery (4A Limit) photo-1

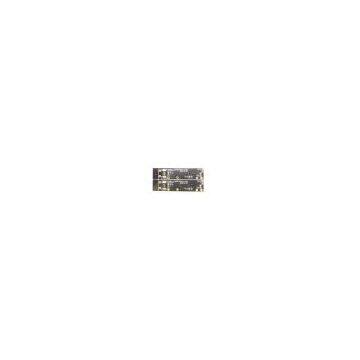

Battery Protection Board for 11.1V Lithium Ion Battery (4A Limit) photo-2

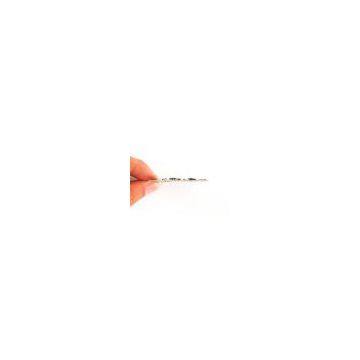

Battery Protection Board for 11.1V Lithium Ion Battery (4A Limit) photo-3
US$ 3.5 - 3.5 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
R-Founder
Place of Origin:
China
Model Number:
ZFC10LR-03A
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name R-Founder
Place of Origin China
Model Number ZFC10LR-03A
As the name suggests, the battery protection board is mainly directed against rechargeable (generally refers to lithium batteries) the protective role of the integrated circuit board. Lithium battery (rechargeable type) so in need of protection, is determined by its own characteristics. Li-ion and Li-Polymer battery packs should always be used with a protection circuit to prevent the cell from over charging, over dis-charging, over current or short circuit. Choosing the correct circuit and applying it appropriately is vital to the longevity your batteries and your own safety.

No.

Test item (25℃)

Criterion

1

Overcharge protection voltage for single cell

4.275 ± 0.025V

2

Over discharge protection voltage for single cell

2.30 ± 0.08V

3

Over current detect voltage

0.13 ± 0.03V

4

Current consumed in normal operation

30uA

5

Current consumed in sleeping mode

0.1uA

6

Over current protection current during discharging

4A

7

Over current protection current during charging

3A

8

Over current protection time

20mS

9

Short circuit protection time

0.4uS

10

Interior resistance

75mΩ

11

Working temperature

-20 – 55℃

12

Size

10x 40 x 3.0mm

If you have any questions, please feel free to contact us.
